INSPECTION PROCEDURE 6: Power Window Anti-trap Function does not work Normally (Driver's side only): Notes

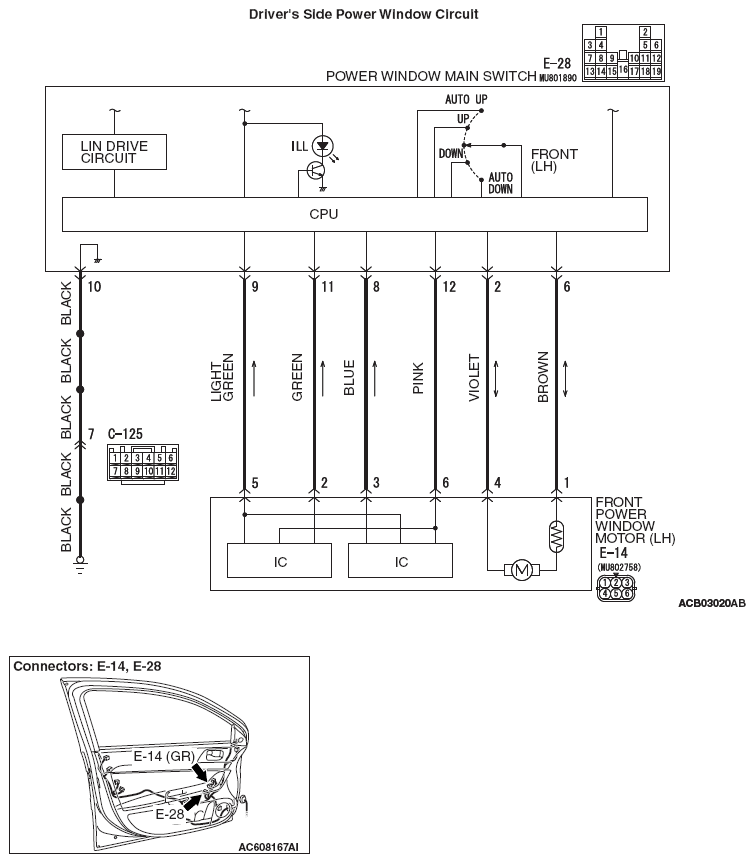

Fig 1: Driver Side Power Window Circuit Diagram
G09627593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
