Control Unit

Name Symbol
A/C control panel (incorporating CPU) < Vehicles with A/C > P
ABS-ECU A
ASC-ECU A
Audio visual navigation unit (incorporating CPU) < Vehicles with MMCS > G
AWC-ECU < Turbo > J
AWD-ECU < 2.4L Engine (AWD) > J
Column switch (incorporating column-ECU) E
Combination meter (incorporating CPU) F
Electric power steering-ECU < Non-turbo (2.0L Engine) > Q
Engine control module B
ETACS-ECU I
Front seat assembly (RH) (incorporating occupant classification-ECU) R
Hands free module H
Headlight control unit < Vehicles with discharge type headlight > D
Heater control panel (incorporating CPU) < Vehicles without A/C > P
KOS-ECU M
Power window main switch (incorporating CPU) T
Receiver antenna module < Vehicles with KOS > L
Shift lever (incorporating CPU) < TC-SST > O
SRS-ECU N
Sunroof motor assembly (incorporating CPU) S
Transaxle assembly (incorporating ECU) < TC-SST > C
Transaxle control module < CVT > J
Wireless control module < Vehicles without KOS > L

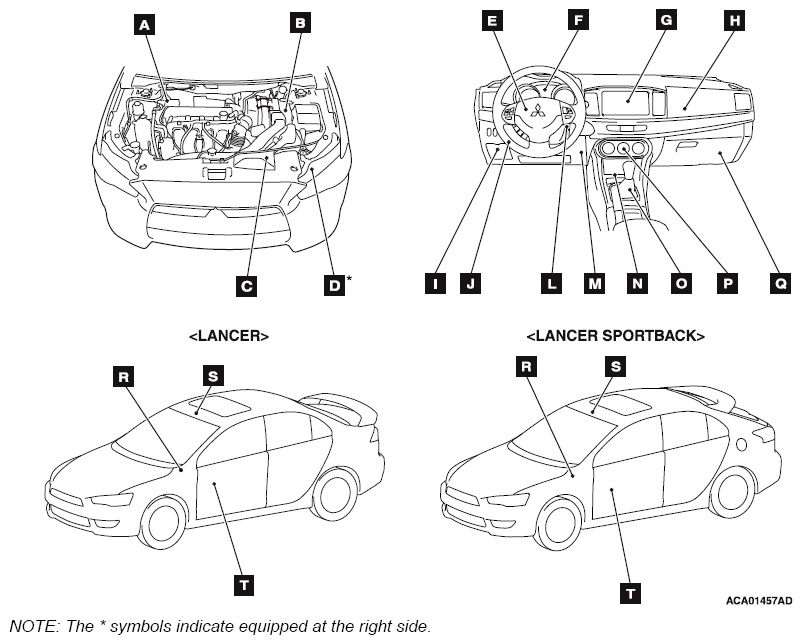

Fig 1: Identifying Control Unit Components
G09619983Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

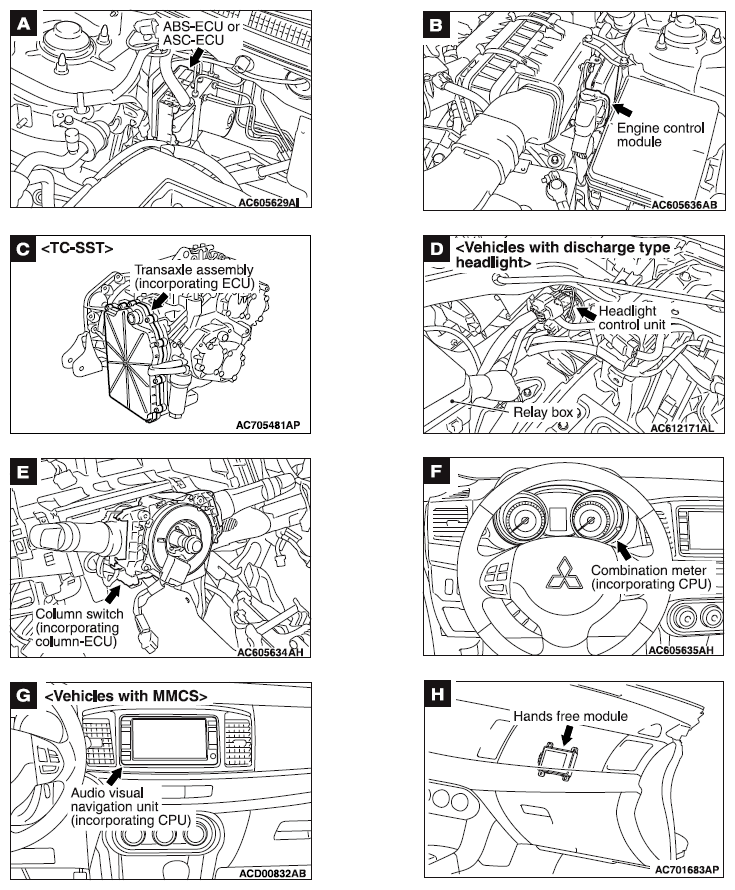

Fig 2: Control Unit Components Locations (1 Of 3)
G09619984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

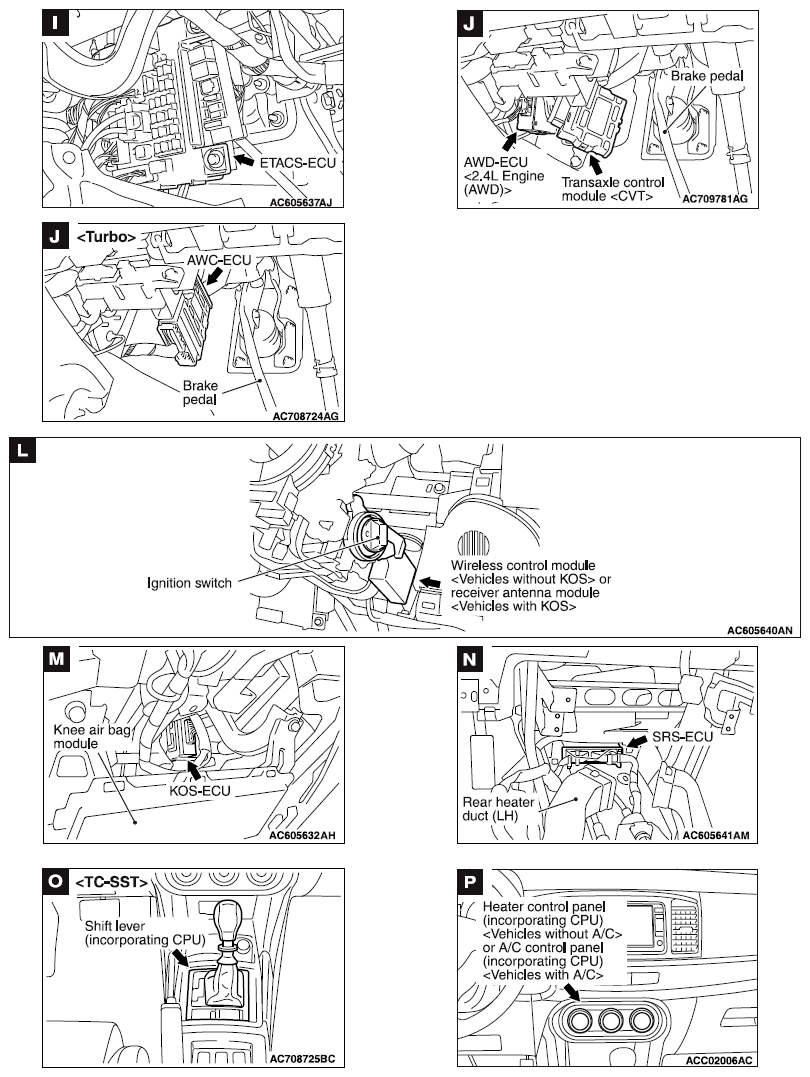

Fig 3: Control Unit Components Locations (2 Of 3)
G09619985Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

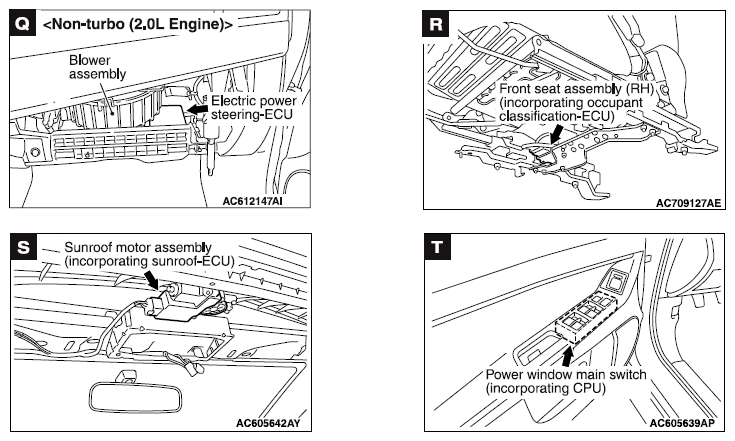

Fig 4: Control Unit Components Locations (3 Of 3)
G09619986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
