Removal And Installation: Notes

CAUTION: The parts indicated by the * are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.

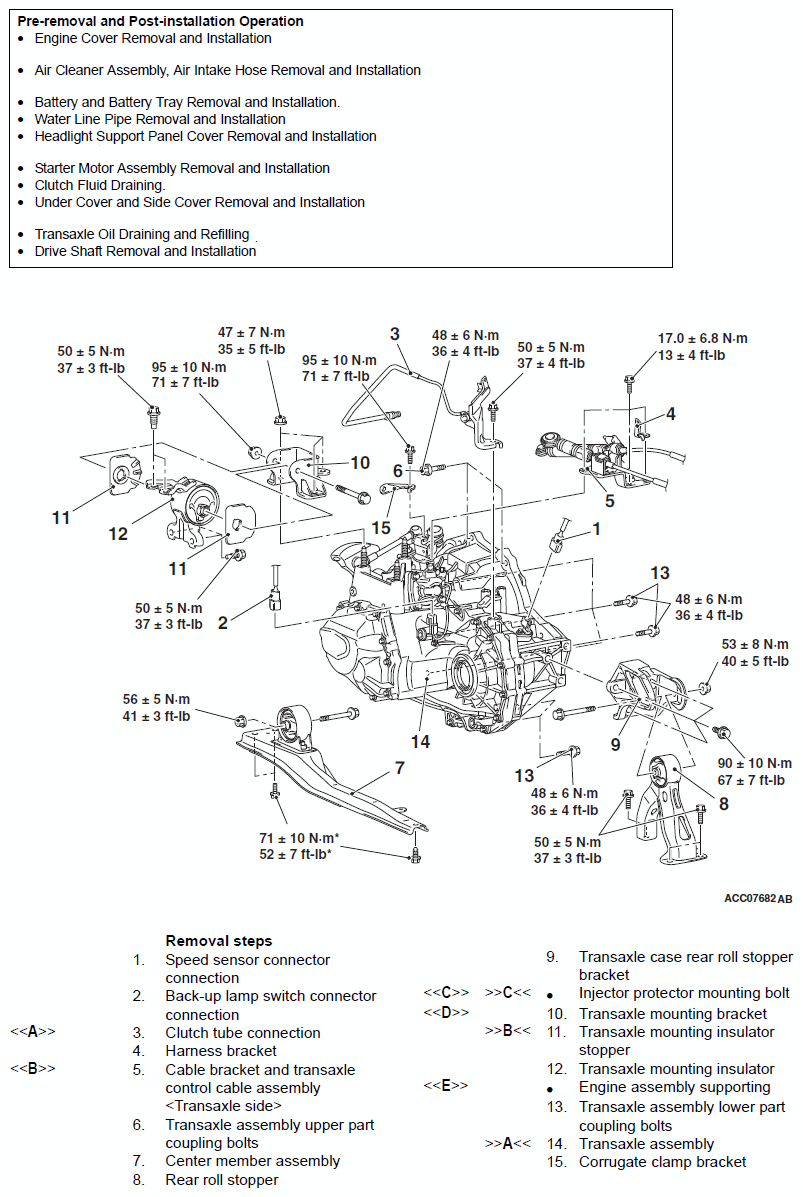

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB991895: Engine Hanger
MB991928: Engine Hanger
MB991527: Hanger
MB991930: Joint (90)
MB991932: Foot (standard)
MB992201: Engine hanger plate
MB992277: Clip remover plate
