Tie-Rod Installation
CAUTION:
Do not tighten the vise strongly in order not to damage the rack bar.

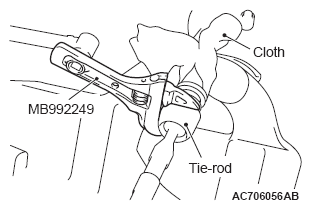

- Wrap rack bar with cloth in order not to damage, and fix the rack bar with a vise.
- Use special tool variable spanner (MB992249) to tighten the tie-rod to the specified torque.
Tightening torque: 89 ± 9 N.m
