DTC B2400: KOS key registration fail: Notes

CAUTION:
  • If DTC B2400 is set, diagnose the CAN bus lines.
  • When replacing the ECU, always check that the communication circuit is normal.

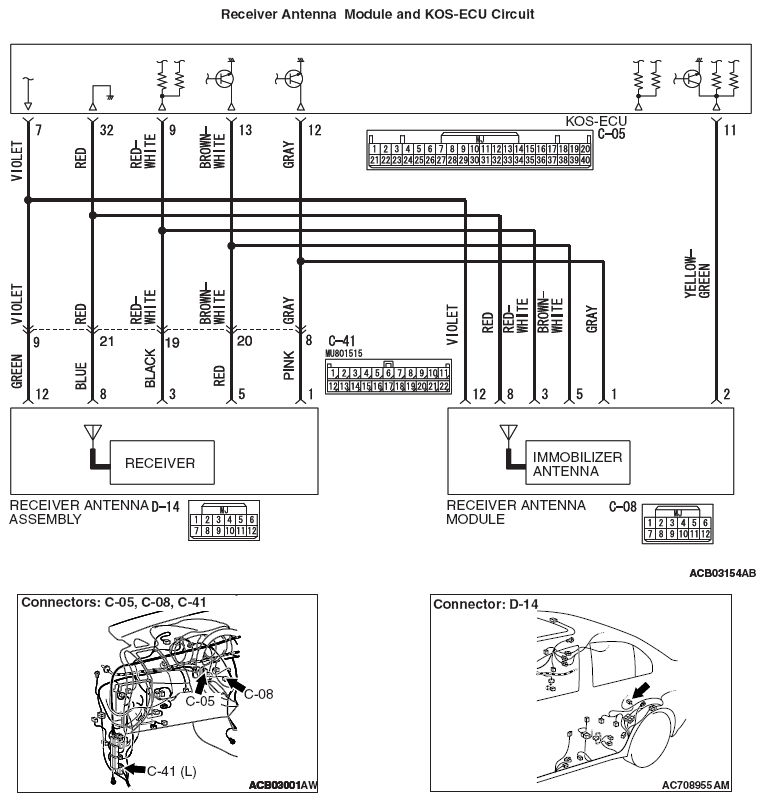

Fig 1: Receiver Antenna Module And KOS-ECU Circuit Diagram
G09651282Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
