DTC B2409 STL unit comm. (No response): Notes

CAUTION:
  • If DTC B2409 is set, diagnose the CAN bus lines.
  • Whenever the steering lock unit is replaced, ensure that the communication circuit is normal.

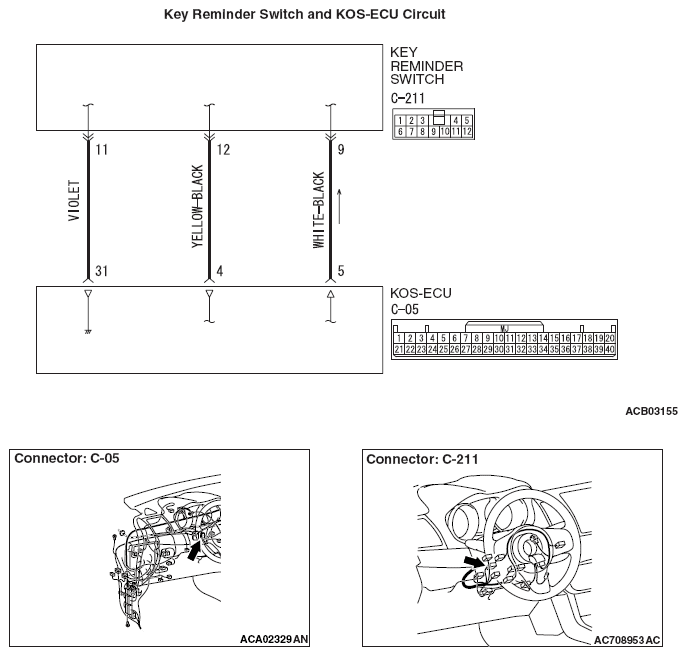

Fig 1: Key Reminder Switch And KOS-ECU Circuit Diagram
G09651309Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
