<< B >> Upper Cover Removal

CAUTION: Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

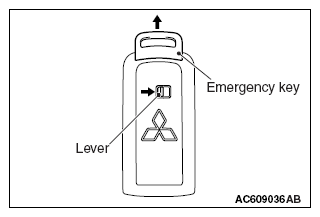

Fig 1: Pulling Out Emergency Key From Keyless Operation Key
G09651453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Place a flat-tipped screwdriver wrapped with protective tape as shown in the illustration, and lever the keyless operation key to remove.

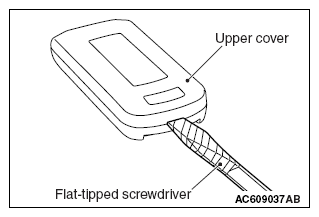

Fig 2: Removing Upper Cover
G09651454Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
