SIRIUS Initialization

  1. Select "SIRIUS Initialization" button on "Service" screen.

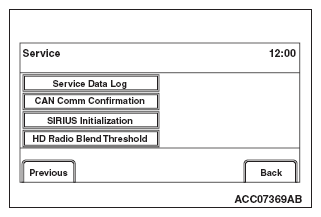

    Fig 1: Service Screen
    G09652733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. "Restarting SIRIUS." screen will be displayed. When you select "Start" button, the SIRIUS will start again.
    NOTE: After a "Back" button is selected, it will be switched back to "Service" screen.

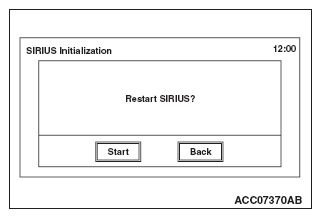

    Fig 2: Restart SIRIUS Screen
    G09652734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

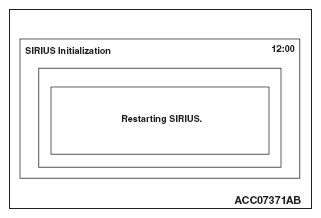

    Fig 3: Restarting SIRIUS Initialization Screen
    G09652735Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. When the SIRIUS has completed starting, "Restart of SIRIUS completed" will be displayed.

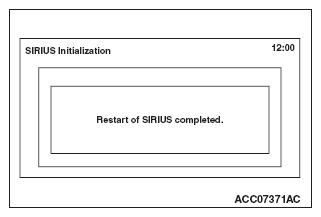

    Fig 4: Restart Of SIRIUS Completed Screen
    G09652736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
