Service Data Log

Select "Service Data Log" button on "Service" screen.

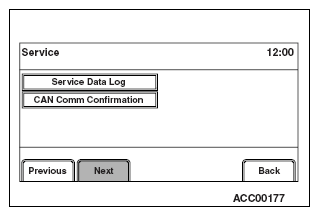

Fig 1: Service Data Log Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The error log, which is stored during a system failure (drive failure), will be displayed.
NOTE:
- Up to ten error logs can be stored.
- The error logs in the list are sorted in descending order from new to old.
- When you select "Delete" button, all of the stored error logs will be erased.

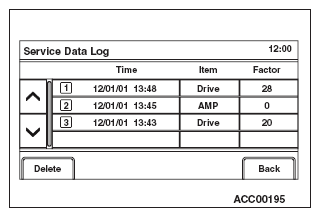

Fig 2: Service Data Log Delete Button Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

LOG INFORMATION - FACTOR CODE CHART

Item	Factor number	Produced log
Drive	20	Log concerning focus
	21	Log concerning disc type
	22	Log concerning disc
	25	Log concerning SEEK
	26	Log concerning servo start-up
	27	Log concerning power-On
	28	Log concerning loading/eject operation
	29	Log concerning pick-up operation
	30	Log concerning state of mechanism
	52	Log concerning TOC reading
HDD	1	Log concerning high temperature
HDD	2	Log concerning low temperature
Monitor	1	Log concerning high temperature
AMP	0	Log concerning connection
AMP	15	Log concerning communication
