Bracket Repair Of Headlight Assembly: Notes
CAUTION:
- If damage is present to locations other than the repairable bracket, replace the assembly.
- Apply a tape to the area around the damaged bracket to prevent damage.
- During repair work, be careful not to damage the repair bracket installation bosses.

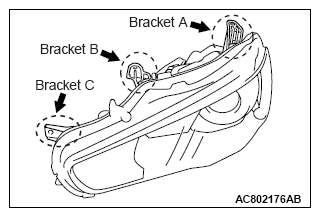

When brackets A, B and C shown in the figure are damaged, a low-cost repair can be performed by mounting a repair bracket.
