>> A << Headlight Control Unit Installation < Vehicles With Discharge Headlight >

  1. As shown in the figure, doubly wrap the portion in the vinyl tape, from the headlight control unit connector root to the point where the harness separation is hidden.

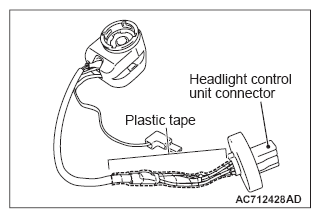

    Fig 1: Identifying Headlight Control Unit Tape Applying Area
    G09652562Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the harness to the headlight assembly. At that time, fitting the harness into the resin washer is unnecessary.

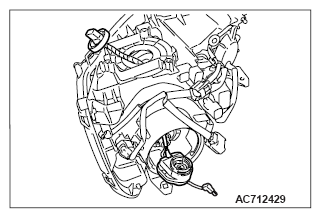

    Fig 2: Identifying Headlight Assembly Harness
    G09652563Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
