Communications & Connection Check

Select "Communications & Connection Check" button on "Unit Diagnosis" screen.

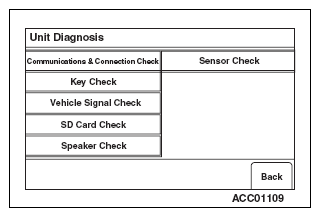

Fig 1: Scantool Display - Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A network and connect line check will be initiated. The "Communications & Connection Check" screen will display how the check is in progress.

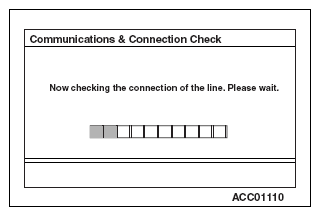

Fig 2: Scantool Display - Communications And Connection Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the network and connect line check is finished, the screen will change to "Network/Connect Line Result" to show the check results.

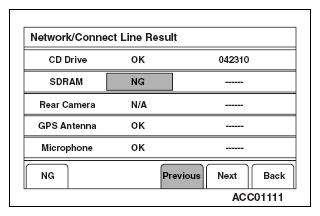

Fig 3: Scantool Display - Network/Connect Line Result
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If there is "NG" or "N/A" as the check results, select "NG" on the "Network/Connect Line Result" screen. Then "NG code Indication" screen will show the NG code.
If "Back" is selected on "Network/Connect Line Result", the screen will return to "UNIT DIAGNOSIS " screen.

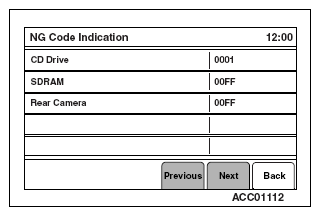

Fig 4: Scantool Display - NG Code Indication
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
