Speaker Check

Select "Speaker Check" button on "Unit Diagnosis" screen.

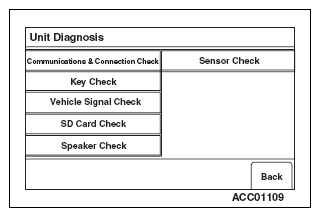

Fig 1: Scantool Display - Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select a speaker to be checked, and play test tone through the speaker.
NOTE:
- By operating the volume key, the volume can be changed.
- During the test, only the selected speaker sounds. If "Back" is selected during the test, the test tone will disappear.

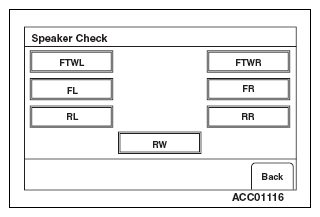

Fig 2: Scantool Display - Speaker Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
