Telematics Log

Select "Telematics Log" button on "Log Function" screen.

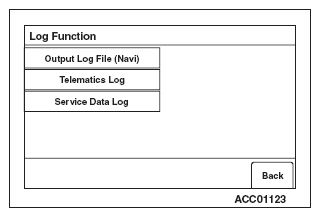

Fig 1: Scantool Display - Log Function
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "Display History" or "History Output" from "from the POI update items on "Telematics Log" screen.
NOTE: If no update history is stored, the icon above will not be active.

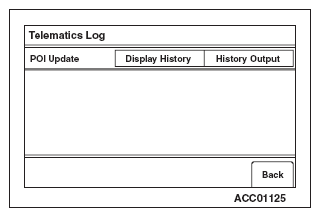

Fig 2: Scantool Display - Telematics Log
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

"Display History" is selected:
- The last 30 items in the POI update history will be displayed.

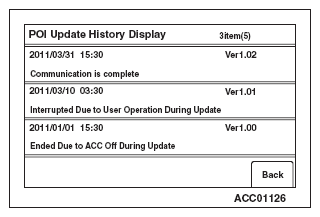

  Fig 3: Scantool Display - History
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
"History Output" is selected:
- Write the POI update history to the SD card which is inserted in the USER slot.

  Fig 4: Scantool Display - History Output
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
