Inspection Procedure 1: No navigation screen is displayed: Notes

CAUTION: Before replacing the multivision display, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more.)

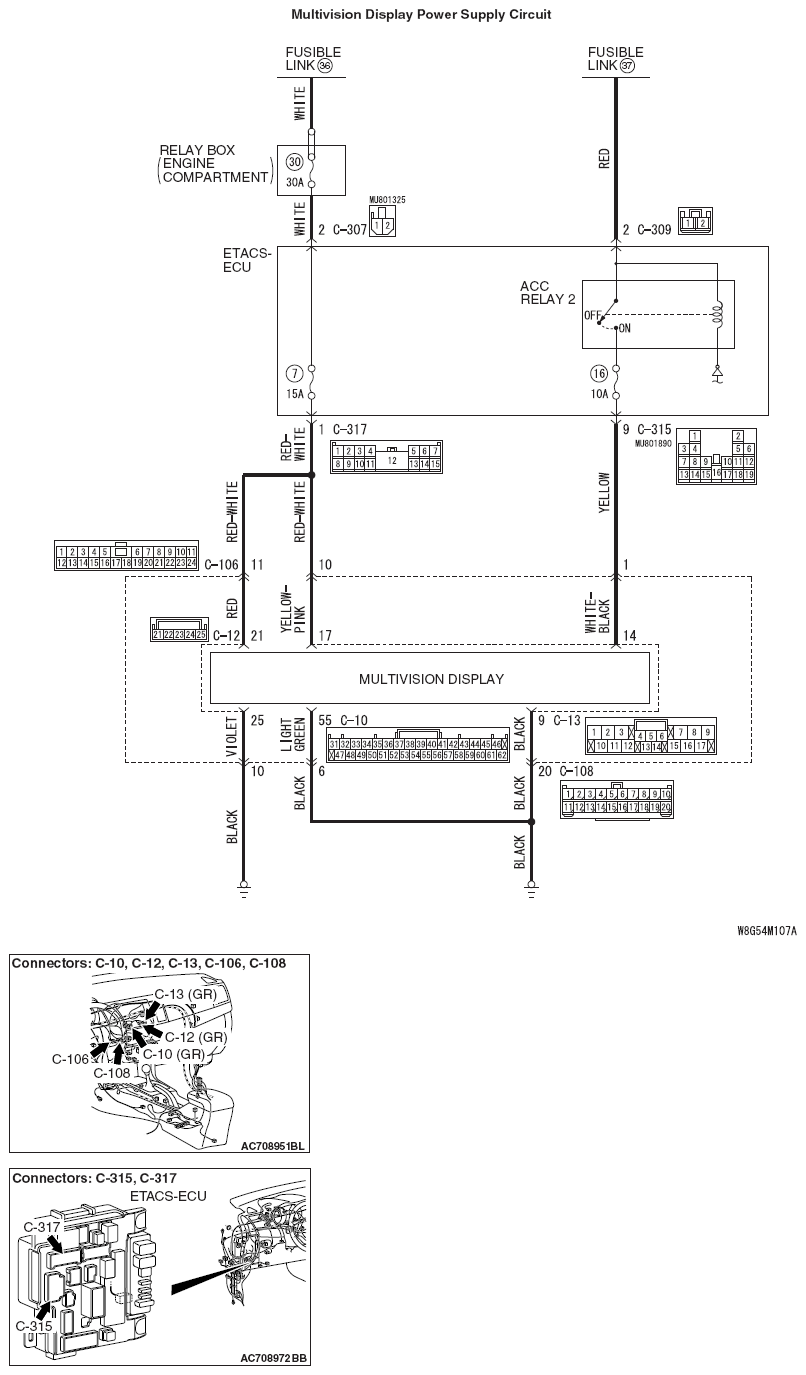

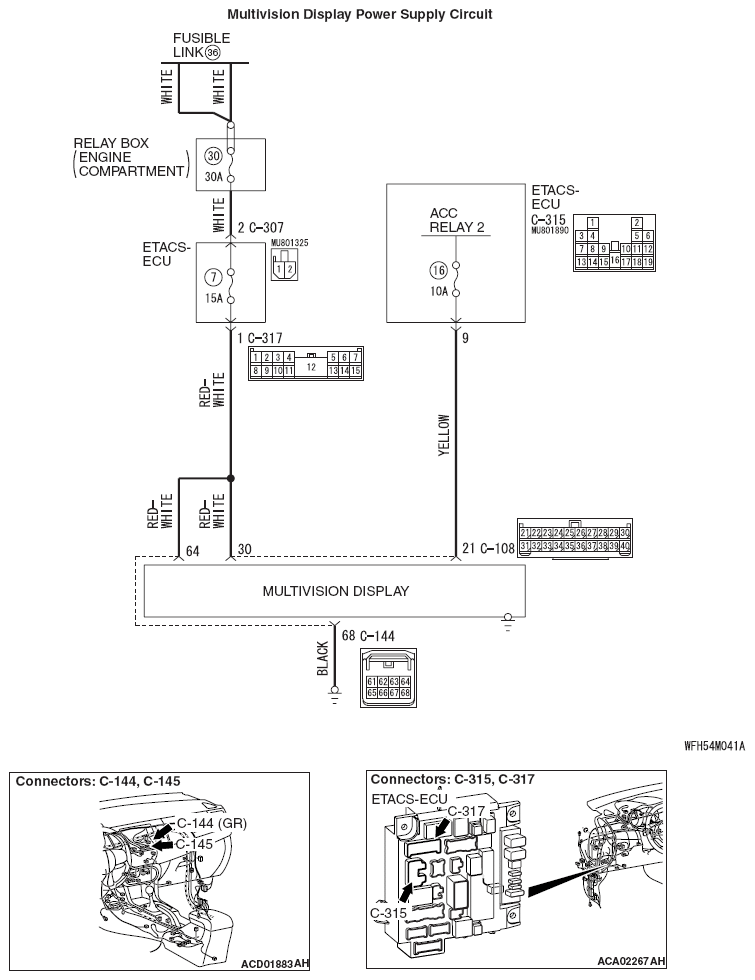

Fig 1: Multivision Display Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When the ignition switch is turned to the ACC position for 30 minutes with the ETACS-ECU function, the ACC power is cut-off automatically. For this function, the time to cut-off can be changed with ETACS system by the scan tool MB991958 or the MMCS operation. (Refer to ON-VEHICLE SERVICE < ETACS > or ON-VEHICLE SERVICE < MMCS >)
