Multivision display

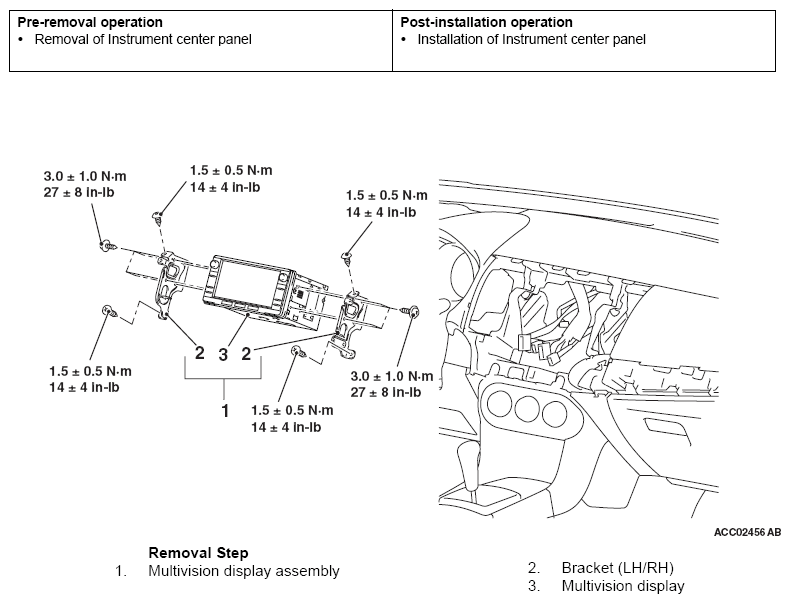

Fig 1: Removing/Installing Multivision Display Mounting Bolts With Torque Specifications
G09652850Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
