Inspection Procedure 1: Steering wheel audio remote control switch does not Function. < Vehicles with radio and CD player >: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

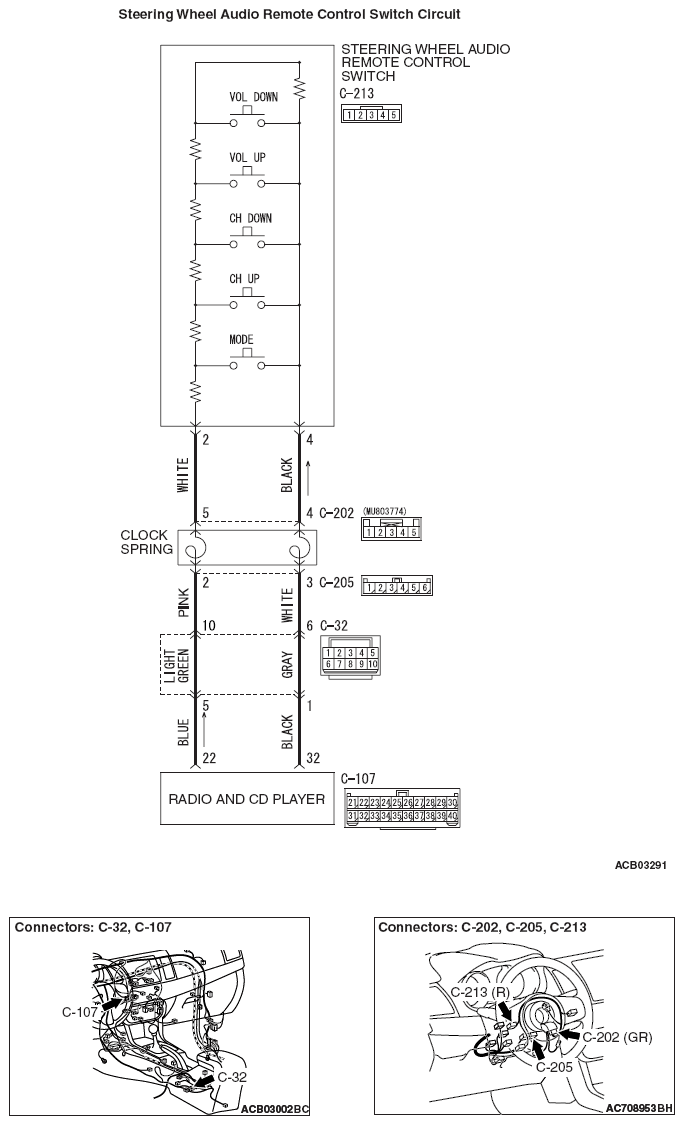

Fig 1: Steering Wheel Audio Remote Control Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
