Removal And Installation: Notes

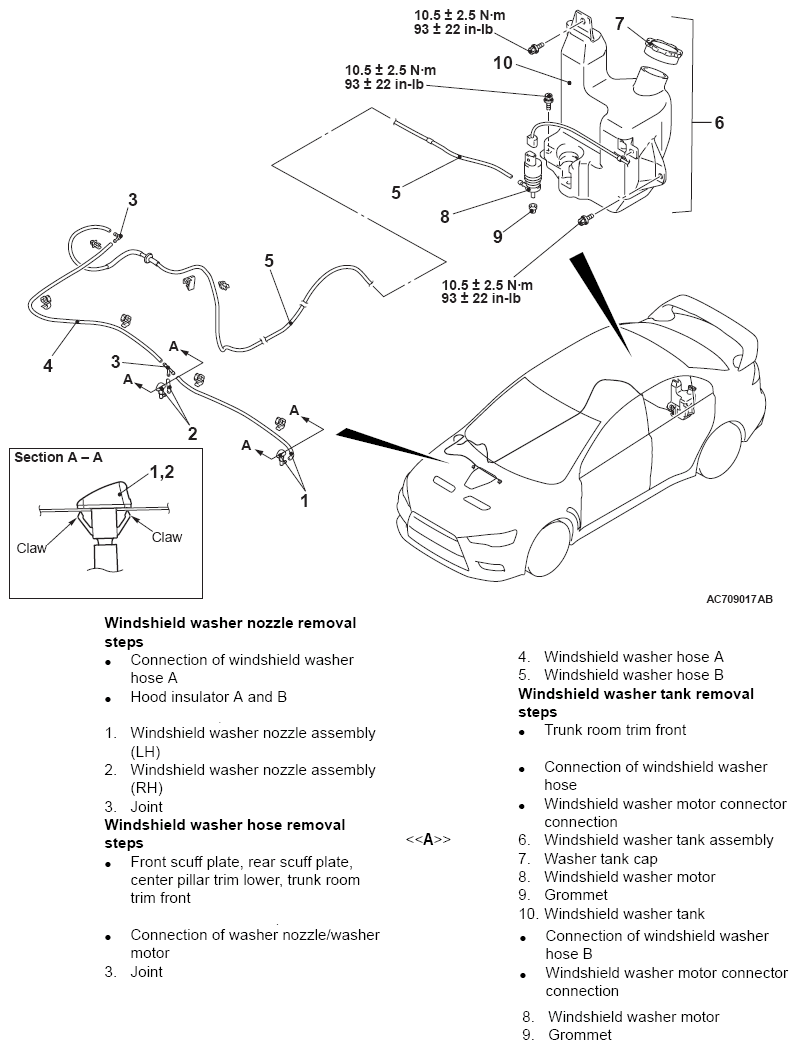

Fig 1: Removing/Installing Windshield Washer With Torque Specifications
G09651660Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH .
