INSPECTION PROCEDURE 2: Driver's Power Window does not work by means of the Power Window Main Switch: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

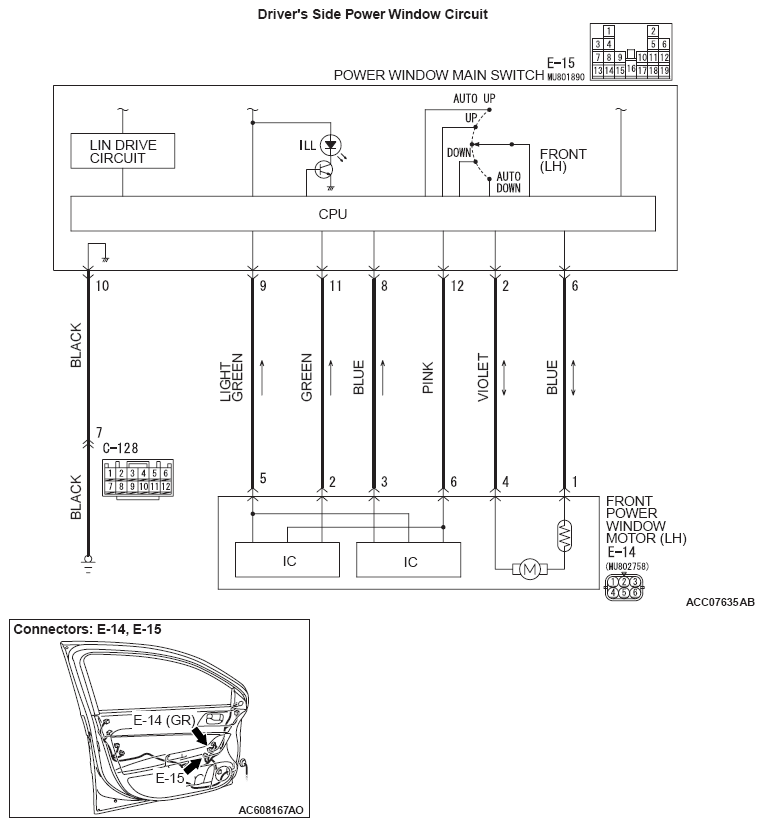

Fig 1: Driver's Side Power Window Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
