Inspection Procedure 1: Scan tool MB991958 cannot Communicate with the Electronic Control AWD System: Notes

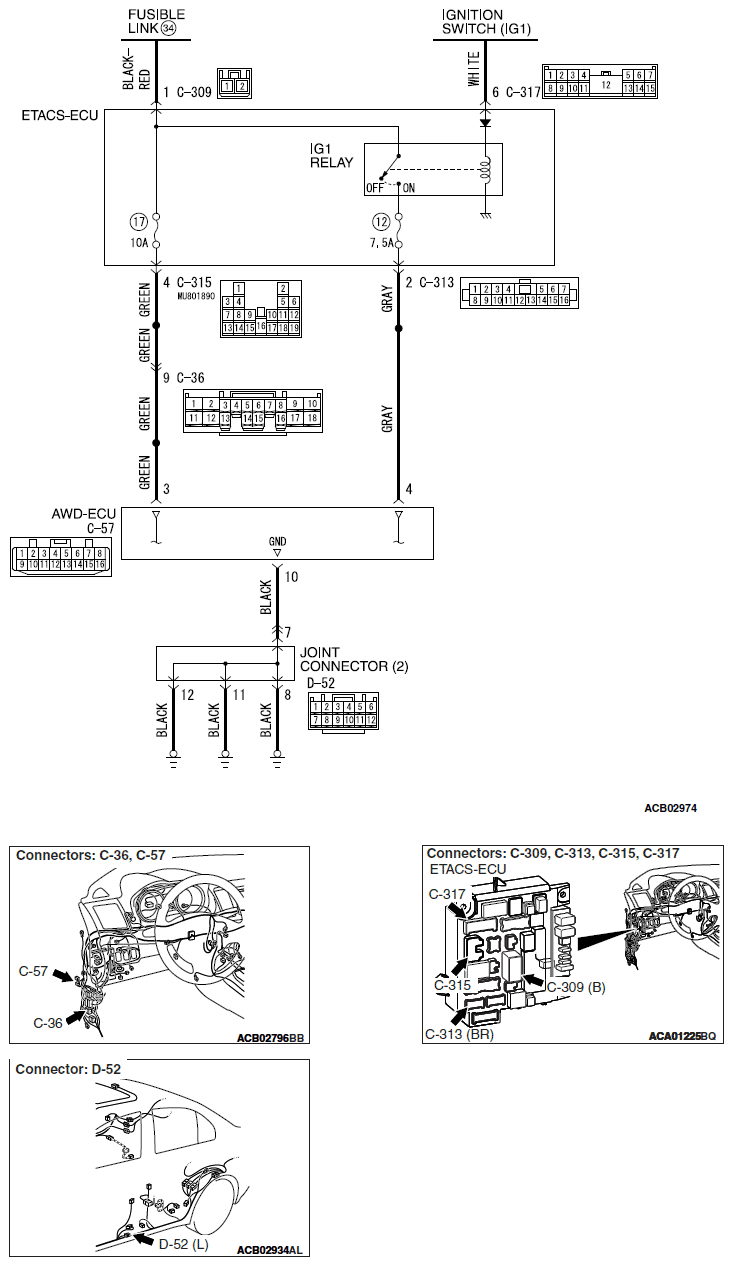

Fig 1: Electronic Control AWD System - Circuit Diagram
G09626783Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
