LSD Case Assembly Disassembly And Assembly: Notes

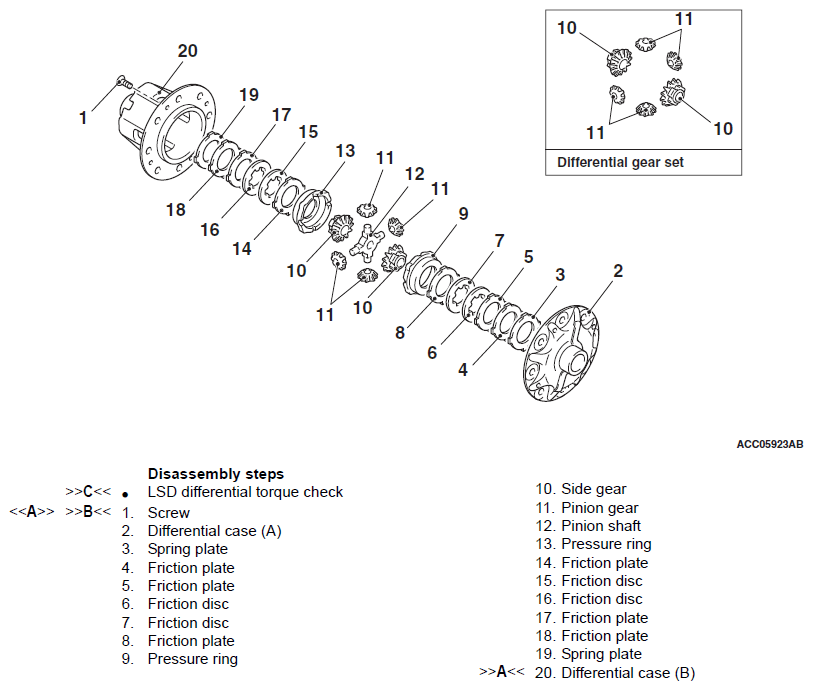

Fig 1: Exploded View Of LSD Case Assembly
G09626759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
