How To Initiate The Service Mode

WARNING: This page is about a different variant/trim than selected.
  1. Press "MAP" button and "SETTINGS" button at the same time for at least 3.5 seconds.

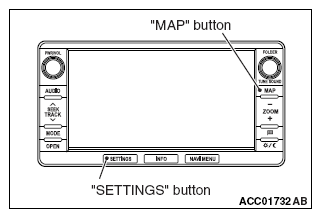

    Fig 1: Display - MAP And Settings Button
    G09630302Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. The service mode will be initiated. Then "Service" screen will be displayed.

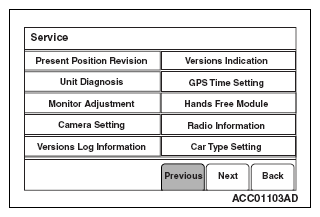

    Fig 2: Display - Service Screen (1 Of 2)
    G09630303Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

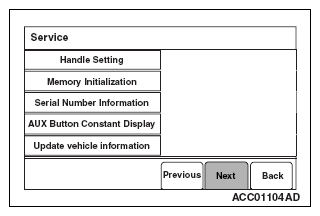

    Fig 3: Display - Service Screen (2 Of 2)
    G09630304Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
