Audio and video adaptor: Notes

WARNING: This page is about a different variant/trim than selected.

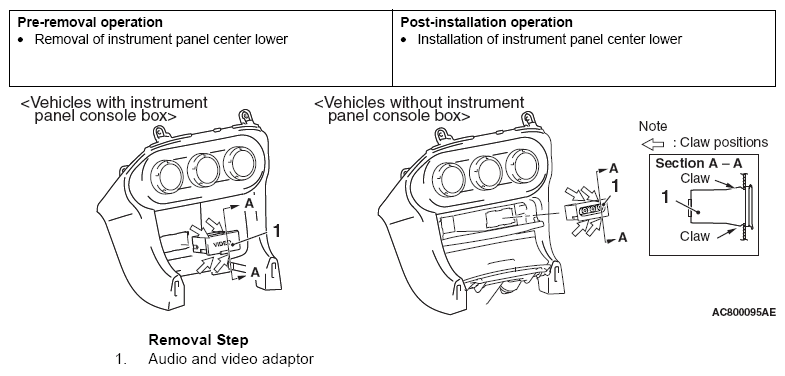

Fig 1: Identifying Audio And Video Adaptor
G09630404Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
