How To Register BLUETOOTH® Device

WARNING: This page is about a different variant/trim than selected.

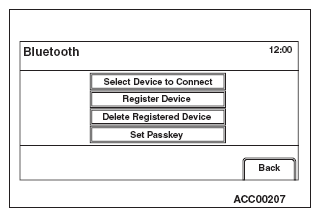

Go to "Bluetooth" screen.
Select "Register Device" button on "Bluetooth" screen.
NOTE:
"Register Device" is inactive under the following cases:
- Seven Bluetooth® devices have been registered.
- Mobile phone is being used.
- Bluetooth® device(s) are being removed.
- Registration of Bluetooth® device(s) are being cancelled.
Fig 1: Display - Bluetooth Setting Button Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

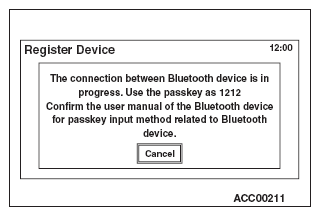

"Starting registration to Bluetooth device" will be displayed. Then "Register Device" screen will be displayed. Enter the passkey (4-digit number), which is displayed on the screen, to the appropriate Bluetooth® device.
NOTE: A predetermined 4-digit number may be assigned to some Bluetooth® devices.

Fig 2: Display - Pressing Cancel Button
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

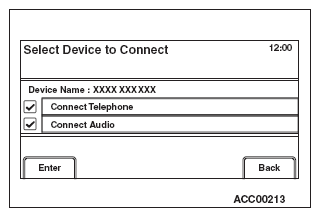

If the registration is successfully completed, "Bluetooth device certification process finished with XXXX (Bluetooth® device name)" will be displayed. It will be switched to "Select Device to Connect" screen in several seconds and then display registered Bluetooth® device(s).

Fig 3: Display - Pressing Back Button
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
