| A-15X |
Fog light relay |
| A-16X |
Horn relay |
| A-17X |
A/C compressor clutch relay |
| A-18X |
Theft-alarm horn relay < Vehicles without theft-alarm sensor > |
| A-19X |
- |
| A-20X |
No connection |
| A-21X |
Headlight relay (High) |
| A-22X |
Throttle actuator control motor relay |
| A-23X |
- |
| A-24X |
Daytime running light relay |
| A-25X |
Injector relay |
| A-26X |
Electric pump relay |
| A-27X |
Fuel pump relay 1 |
| A-28X |
Starter relay |
| A-29X |
Headlight relay (Low) |
| A-30X |
- |
| A-31X |
- |
| A-32X |
- |
| A-33X |
- |
| A-34X |
MFI relay |

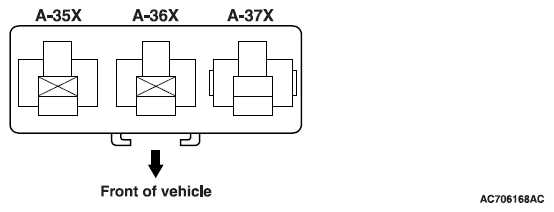

| A-35X |
Radiator fan relay |
| A-36X |
Condenser fan relay |
| A-37X |
Fan control relay |
