Controller Area Network (Can) < TC-SST >

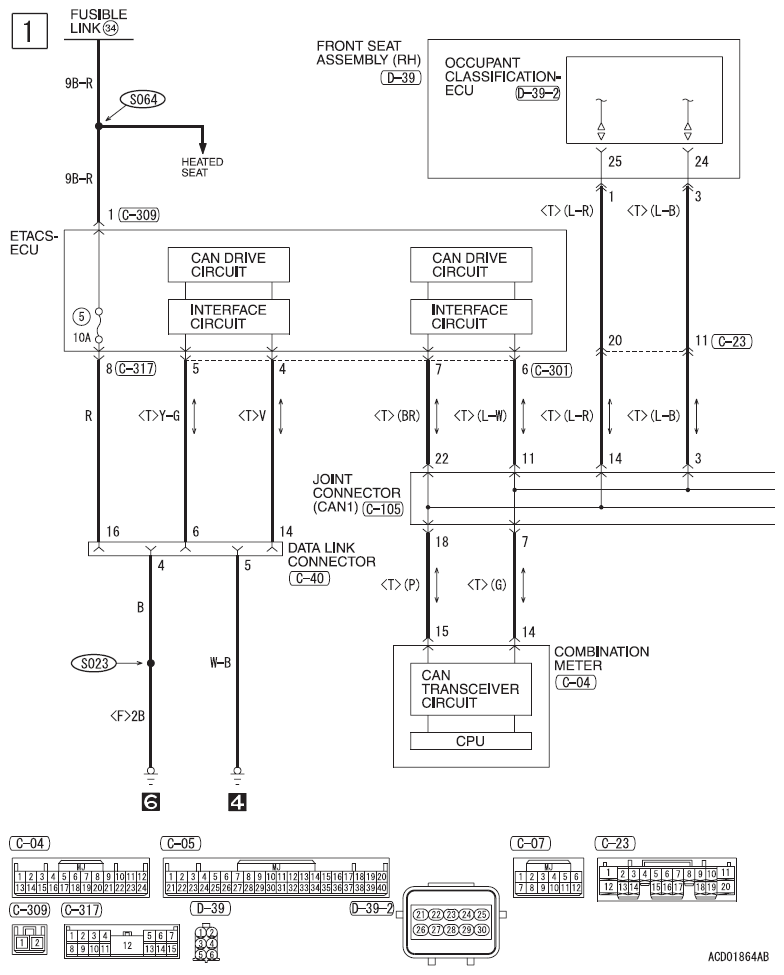

Fig 1: Controller Area Network (TC-SST) - Circuit Diagram (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

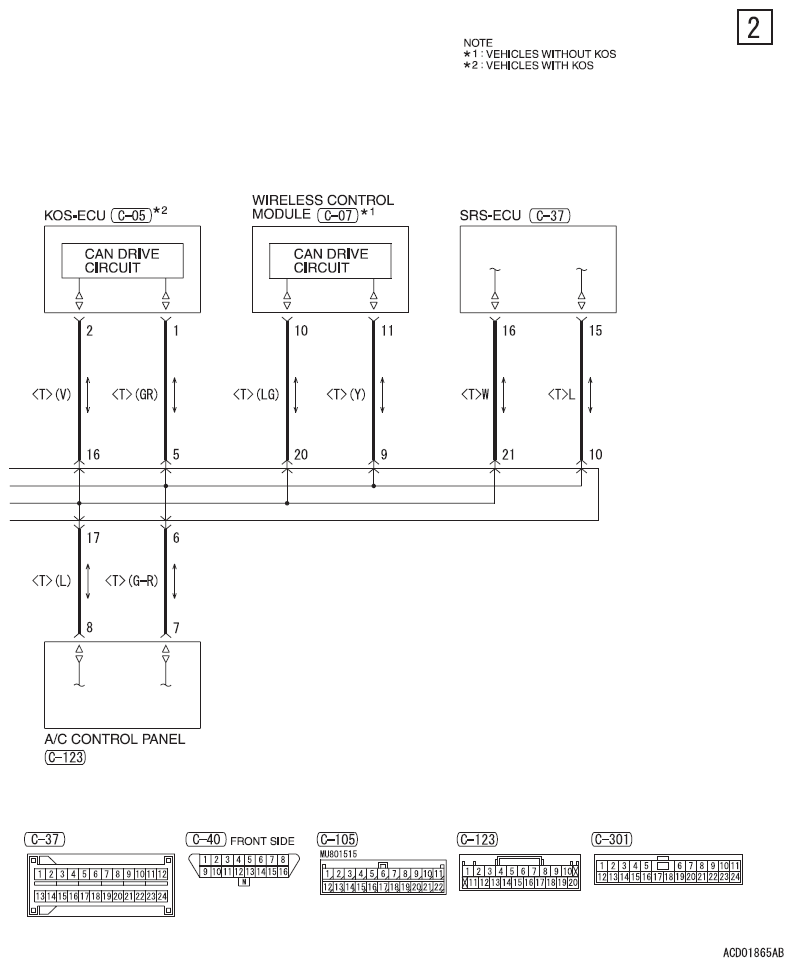

Fig 2: Controller Area Network (TC-SST) - Circuit Diagram (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

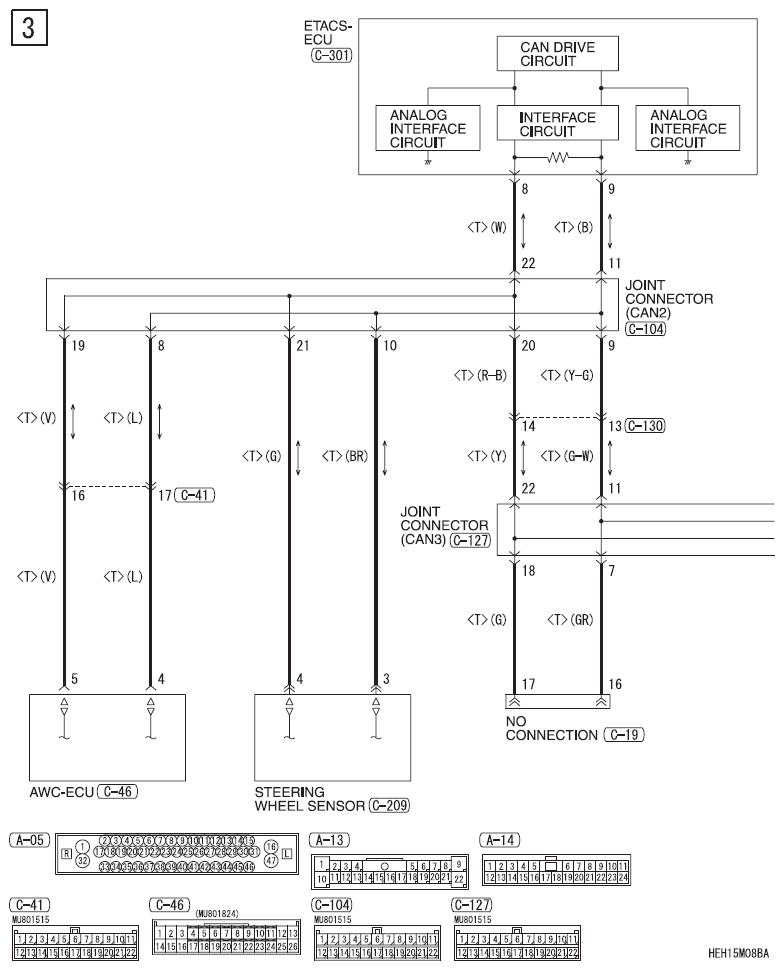

Fig 3: Controller Area Network (TC-SST) - Circuit Diagram (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

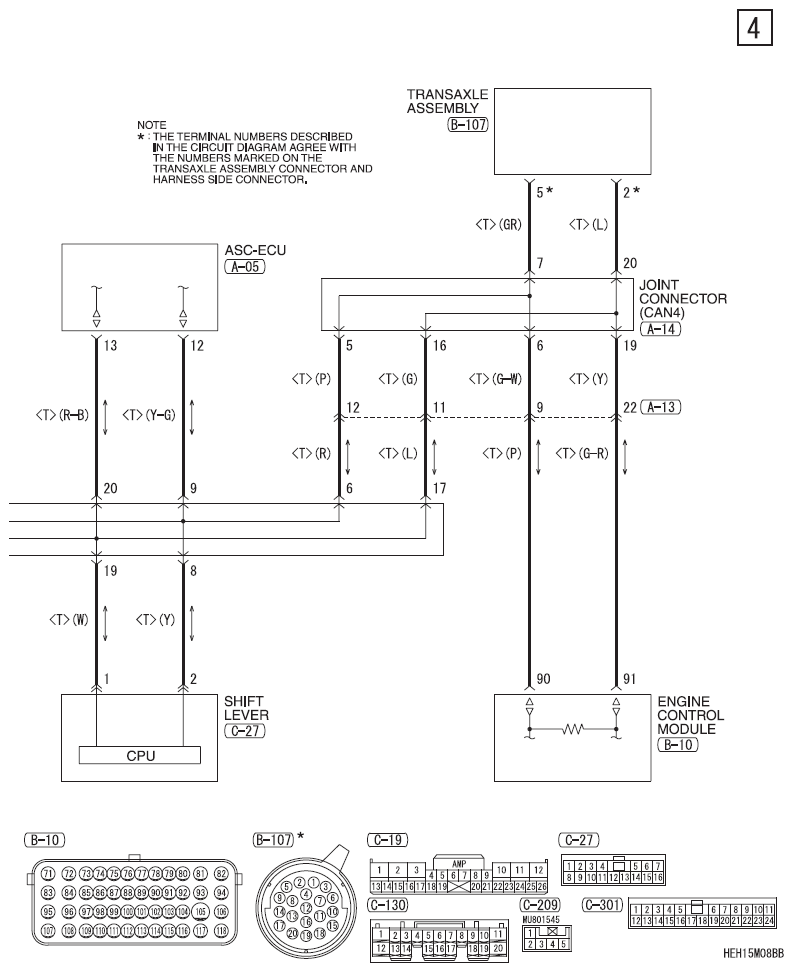

Fig 4: Controller Area Network (TC-SST) - Circuit Diagram (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
