Hands-Free Interface System

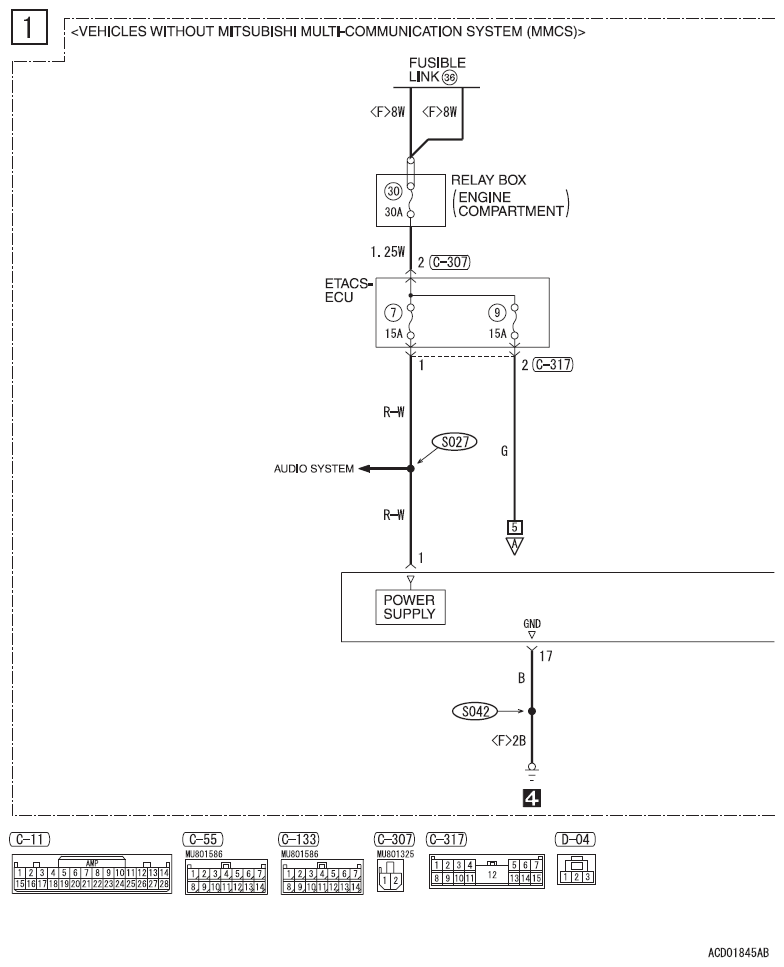

Fig 1: Hands-Free Interface System - Circuit Diagram (1 Of 12)
G09621005Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

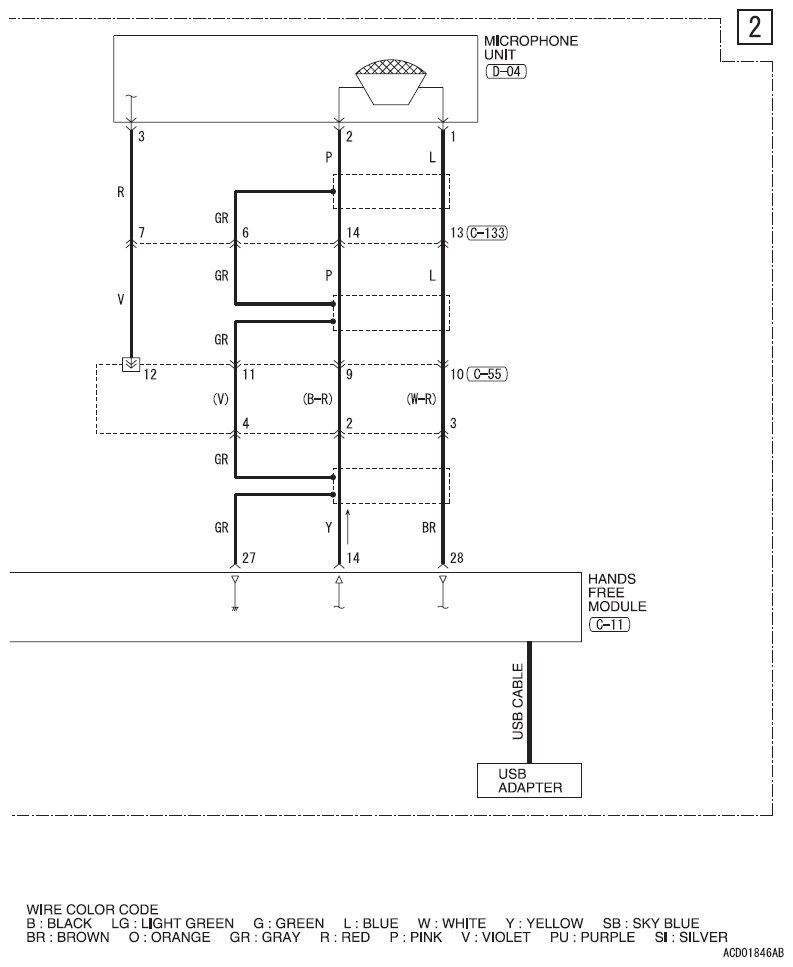

Fig 2: Hands-Free Interface System - Circuit Diagram (2 Of 12)
G09621006Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

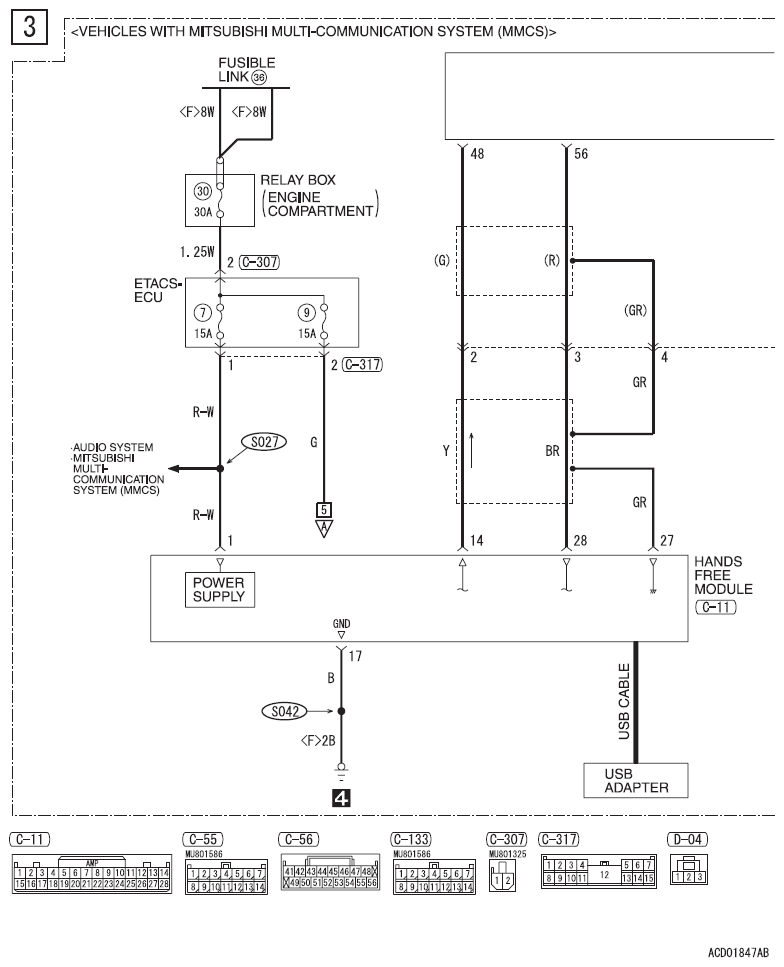

Fig 3: Hands-Free Interface System - Circuit Diagram (3 Of 12)
G09621007Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

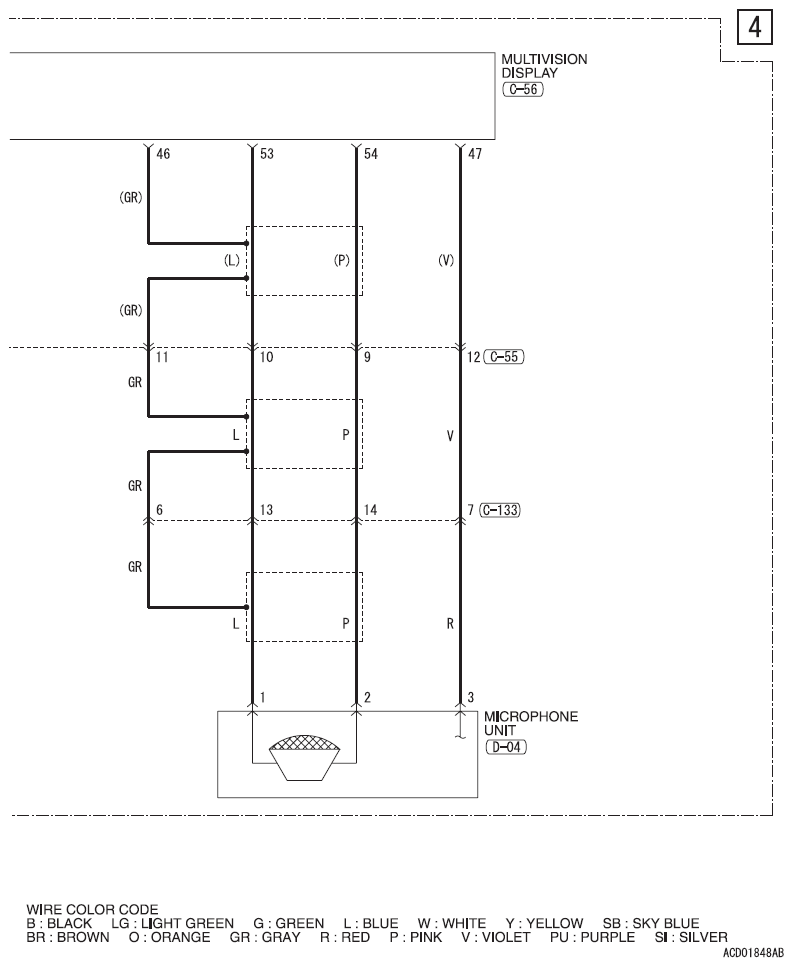

Fig 4: Hands-Free Interface System - Circuit Diagram (4 Of 12)
G09621008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

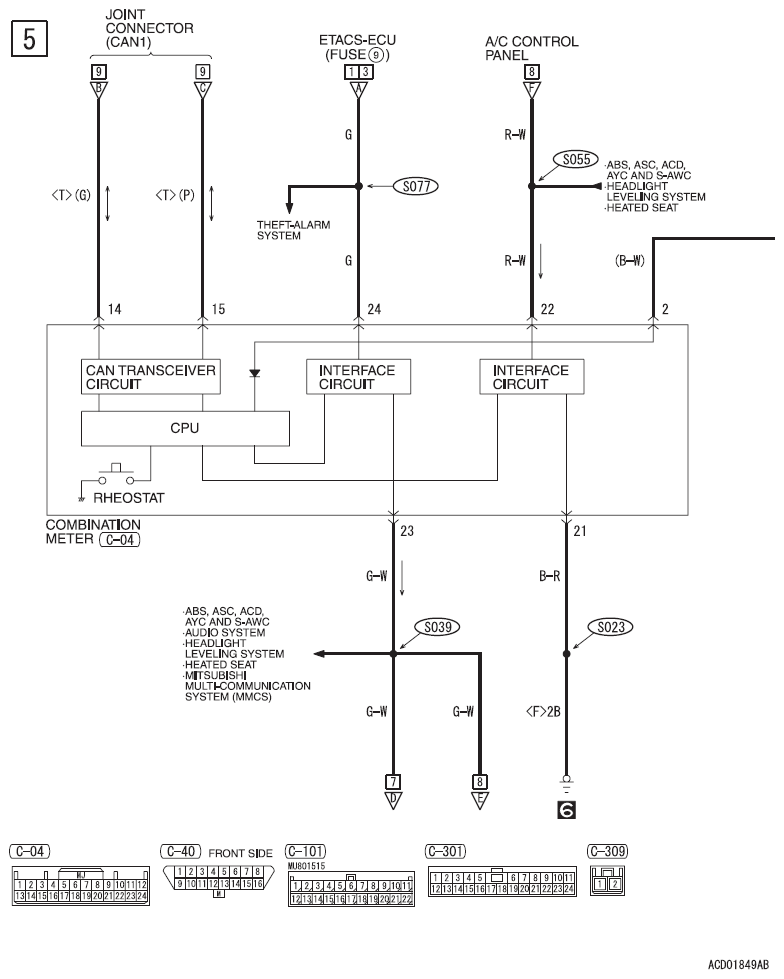

Fig 5: Hands-Free Interface System - Circuit Diagram (5 Of 12)
G09621009Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

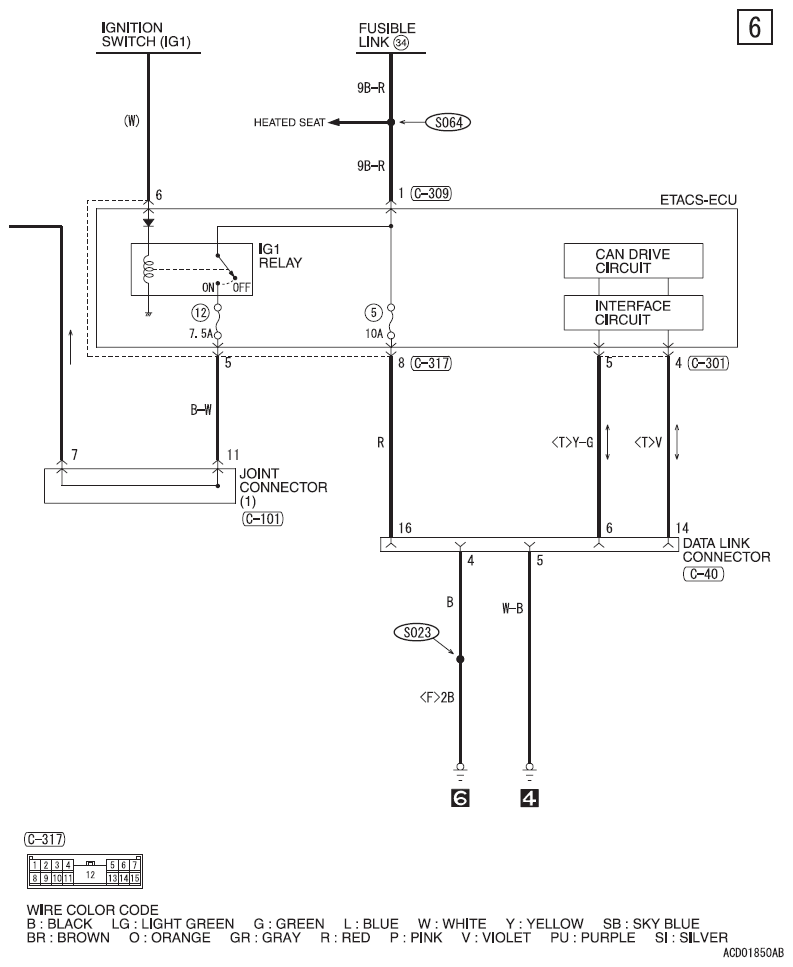

Fig 6: Hands-Free Interface System - Circuit Diagram (6 Of 12)
G09621010Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

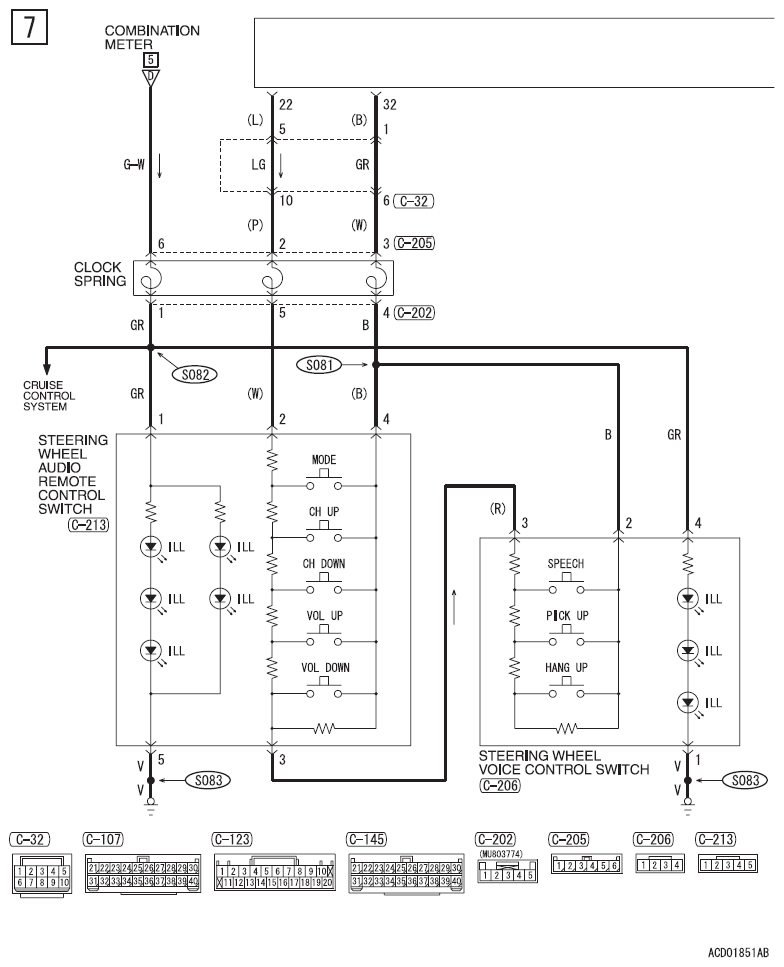

Fig 7: Hands-Free Interface System - Circuit Diagram (7 Of 12)
G09621011Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

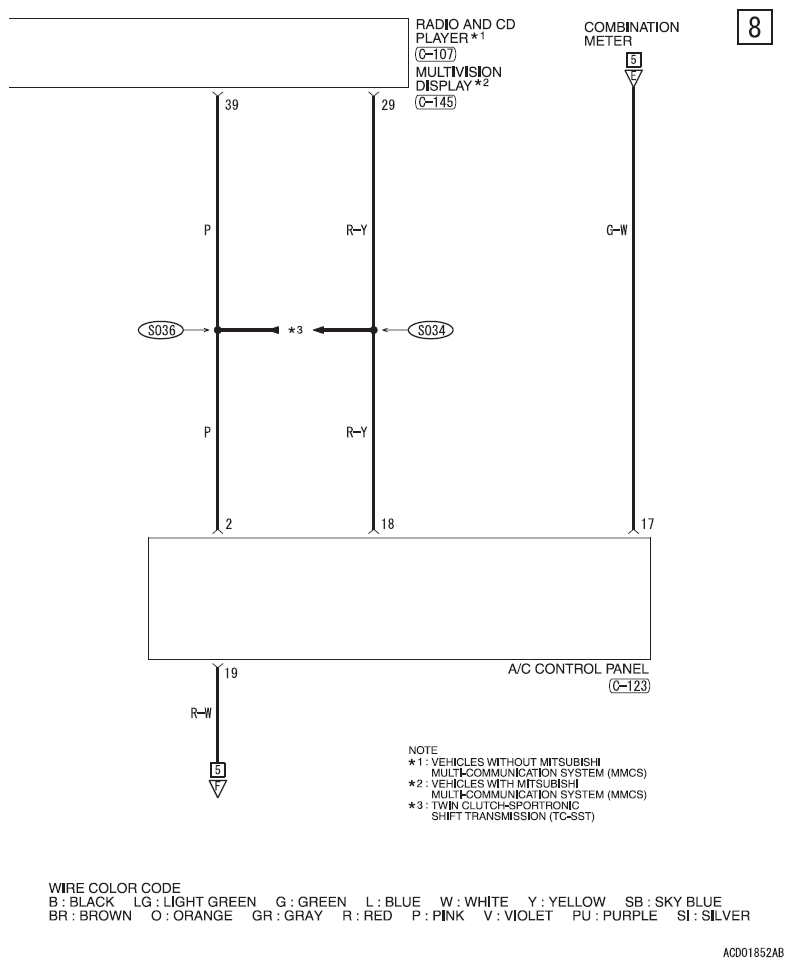

Fig 8: Hands-Free Interface System - Circuit Diagram (8 Of 12)
G09621012Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

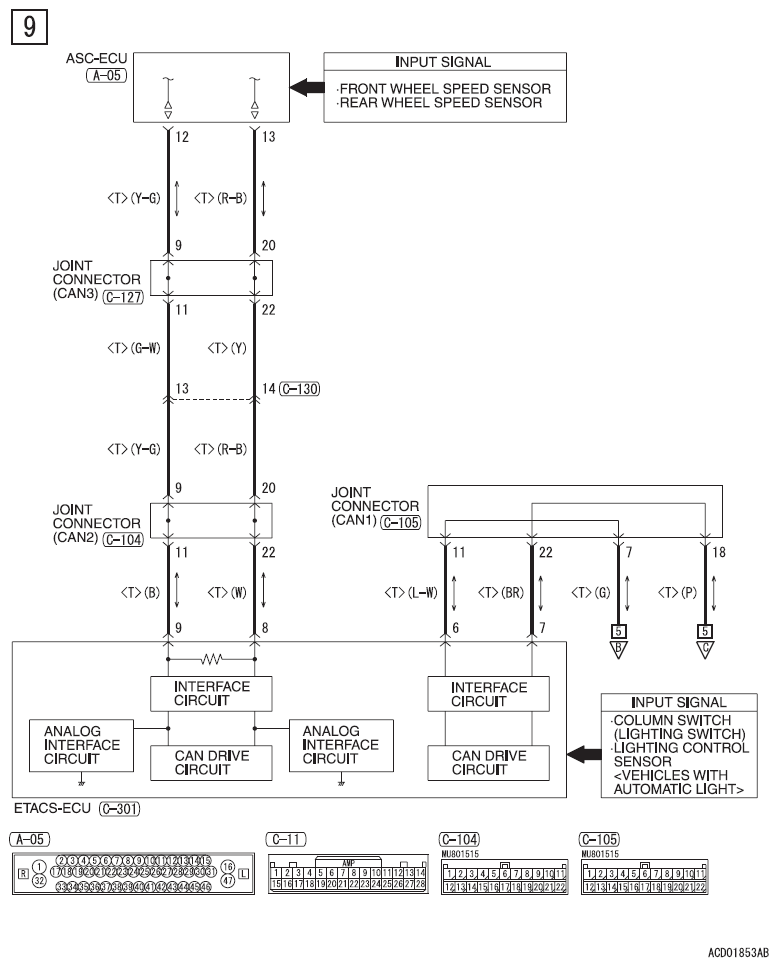

Fig 9: Hands-Free Interface System - Circuit Diagram (9 Of 12)
G09621013Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

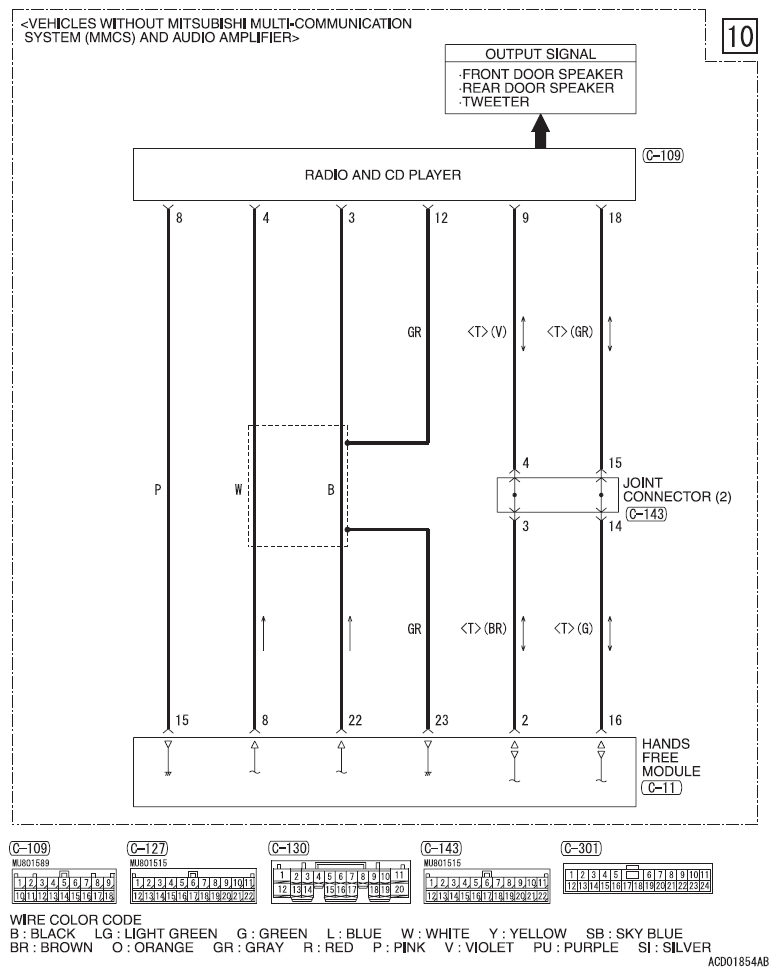

Fig 10: Hands-Free Interface System - Circuit Diagram (10 Of 12)
G09621014Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

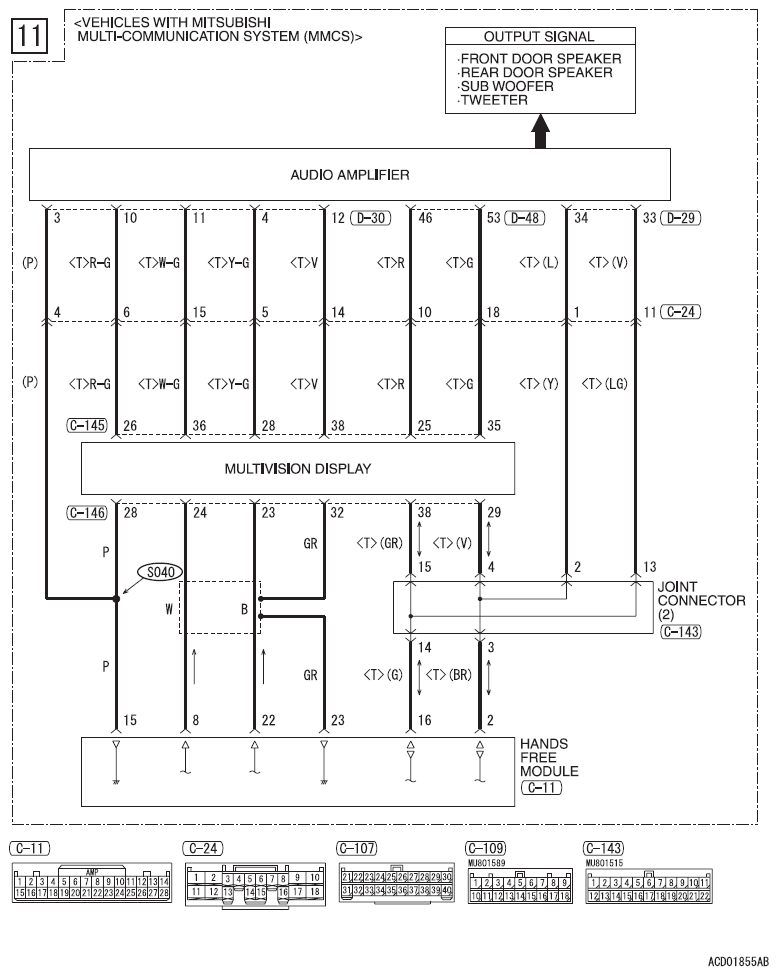

Fig 11: Hands-Free Interface System - Circuit Diagram (11 Of 12)
G09621015Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

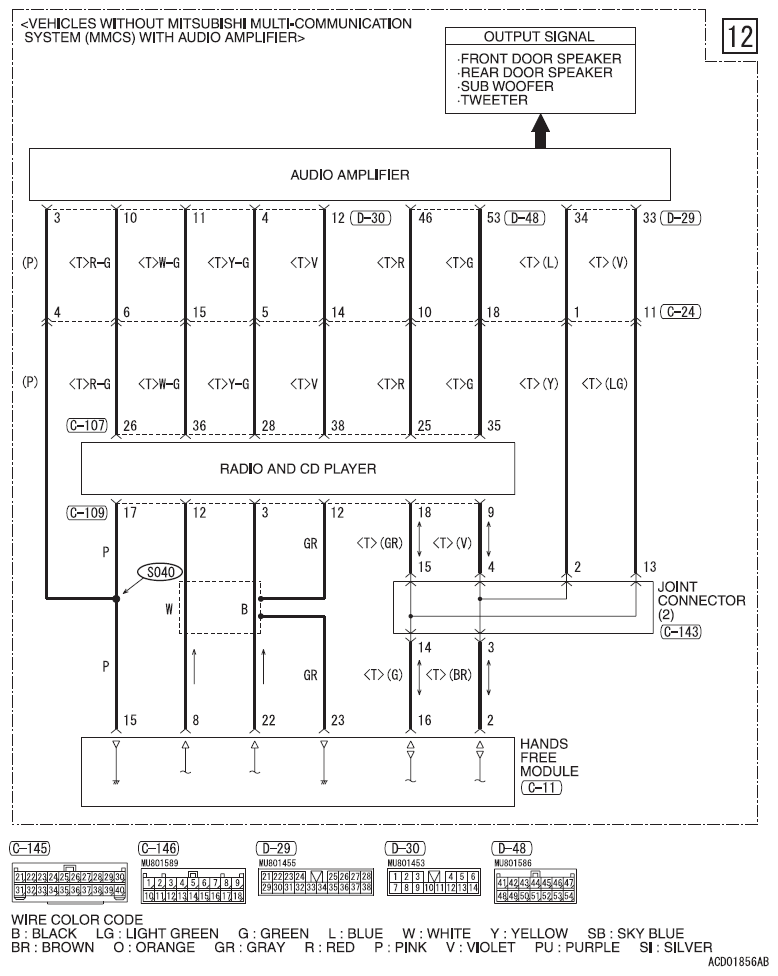

Fig 12: Hands-Free Interface System - Circuit Diagram (12 Of 12)
G09621016Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
