Tire Pressure Monitoring System (TPMS) < M/T >

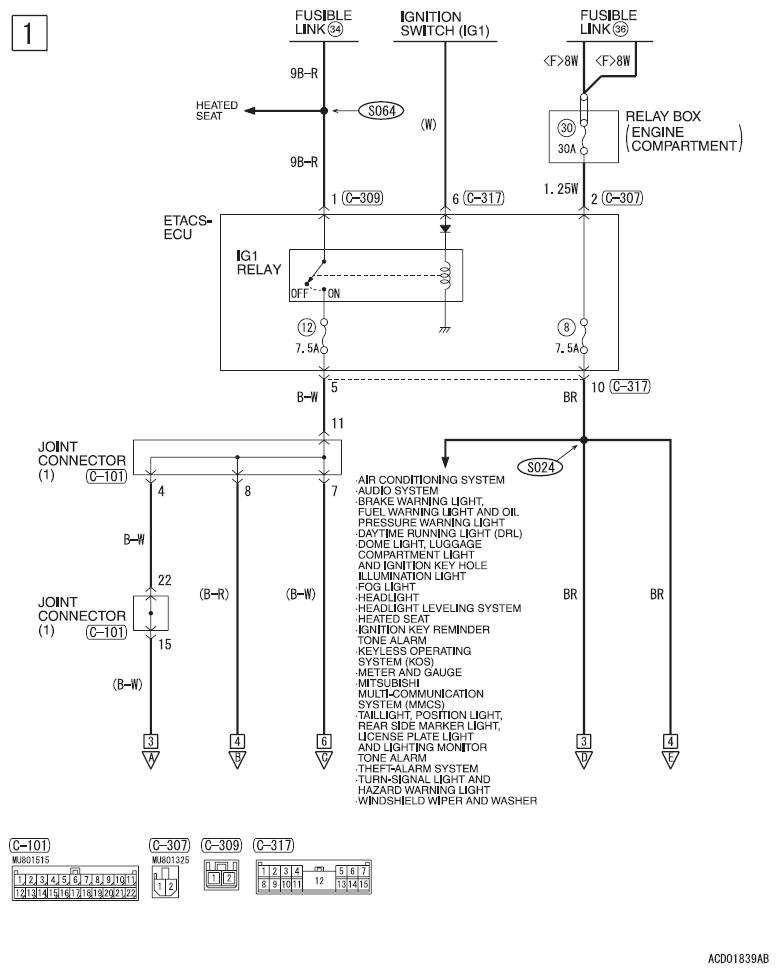

Fig 1: Tire Pressure Monitoring System (M/T) - Circuit Diagram (1 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

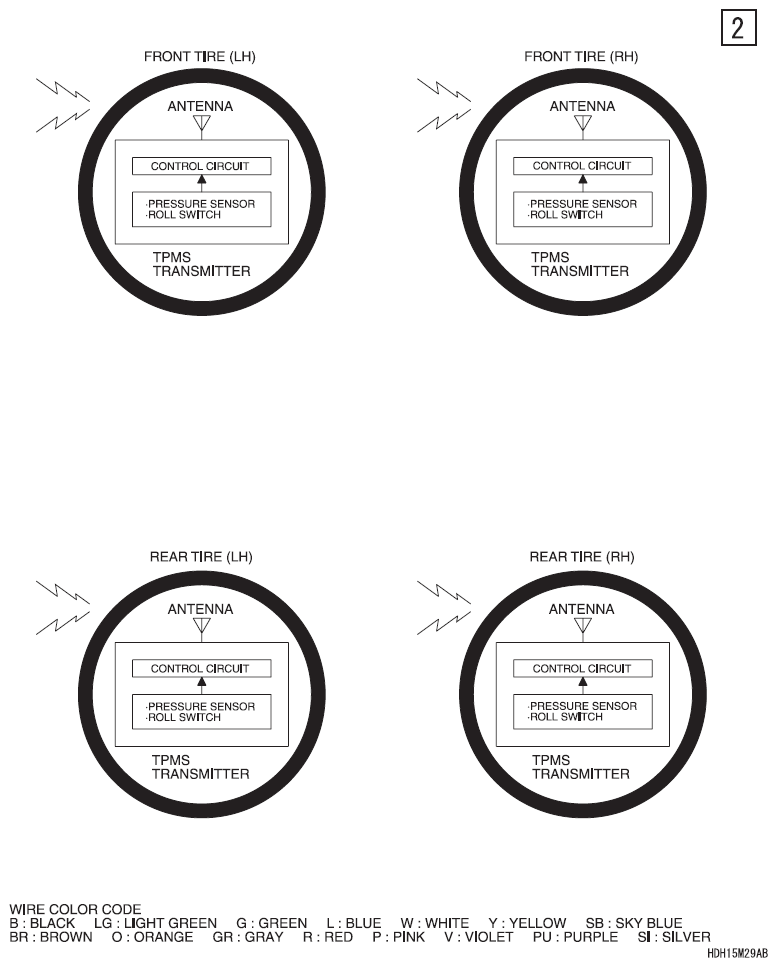

Fig 2: Tire Pressure Monitoring System (M/T) - Circuit Diagram (2 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

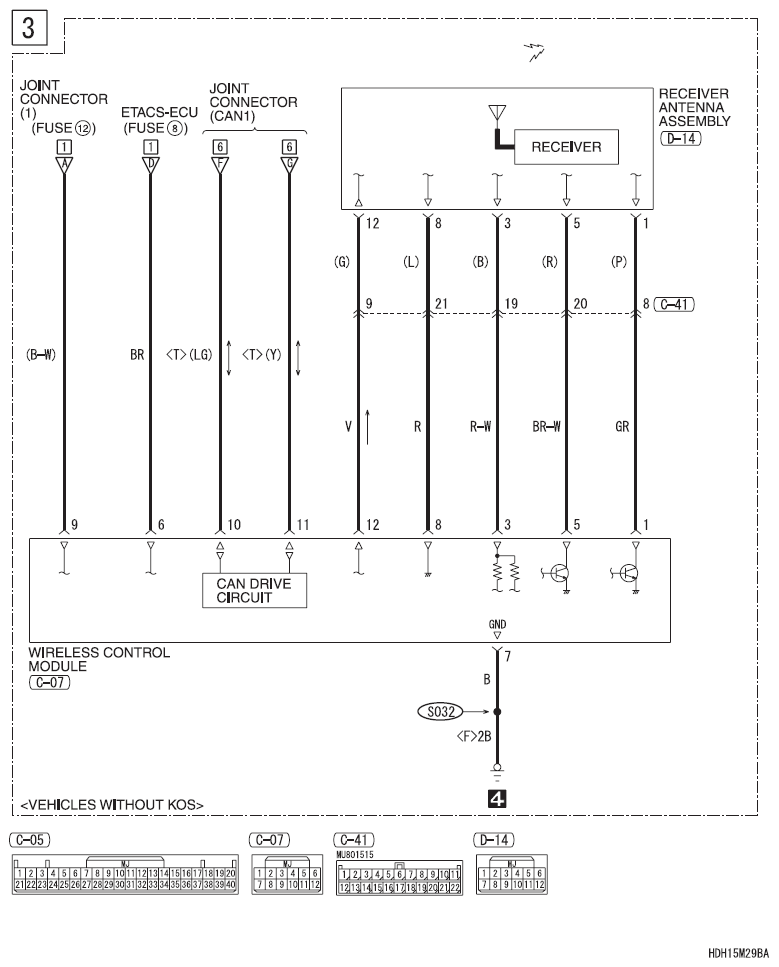

Fig 3: Tire Pressure Monitoring System (M/T) - Circuit Diagram (3 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

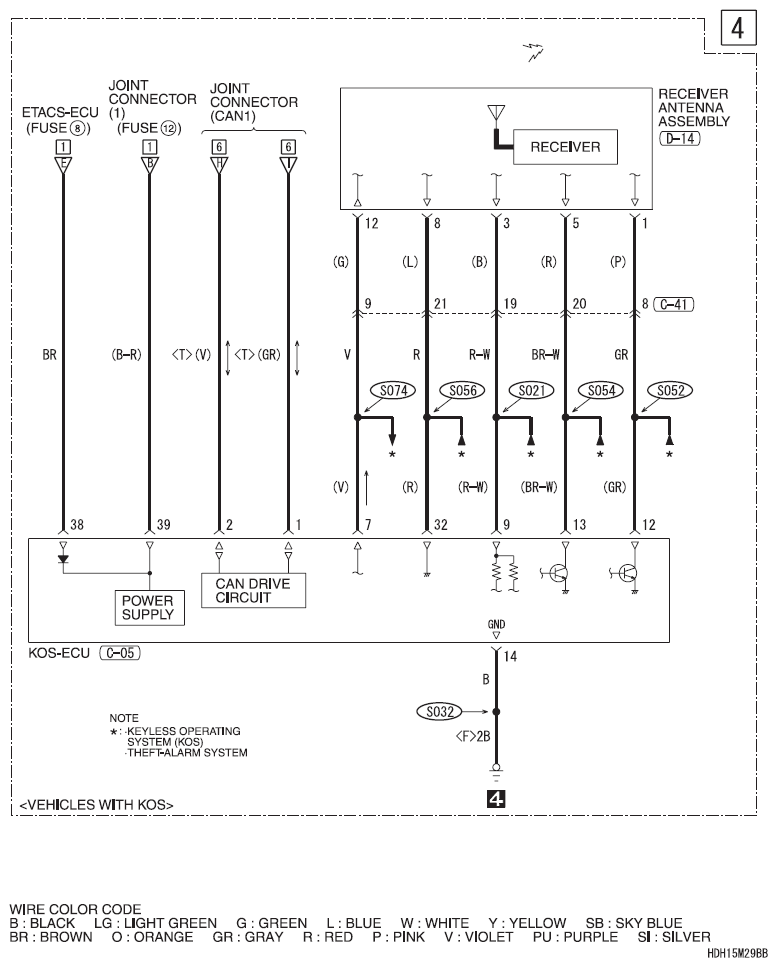

Fig 4: Tire Pressure Monitoring System (M/T) - Circuit Diagram (4 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

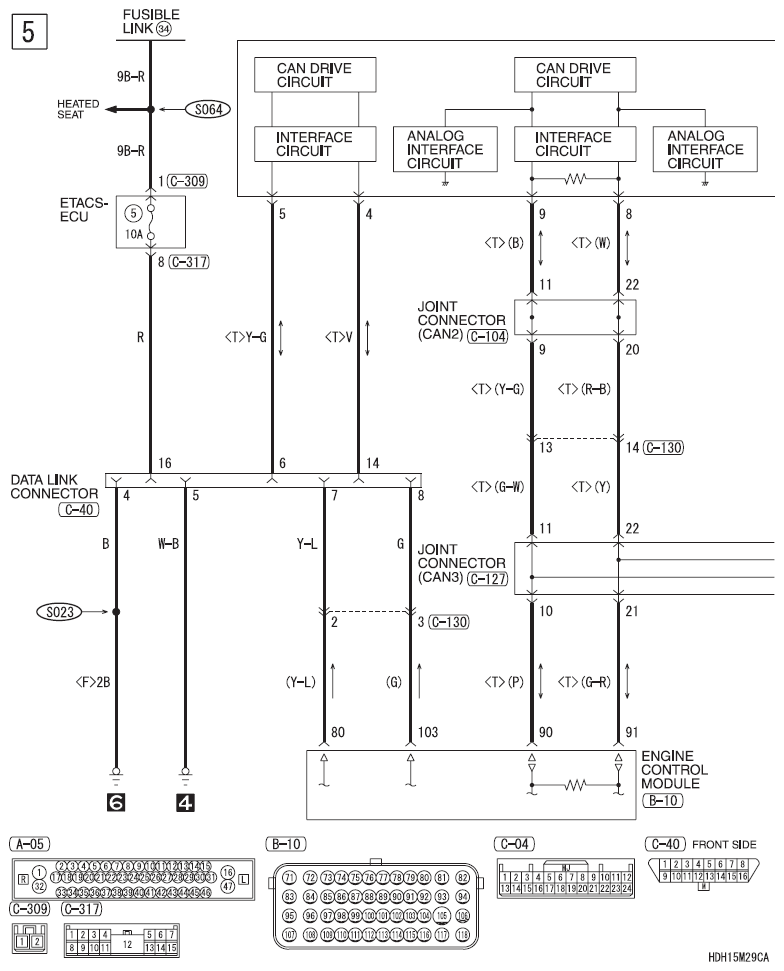

Fig 5: Tire Pressure Monitoring System (M/T) - Circuit Diagram (5 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

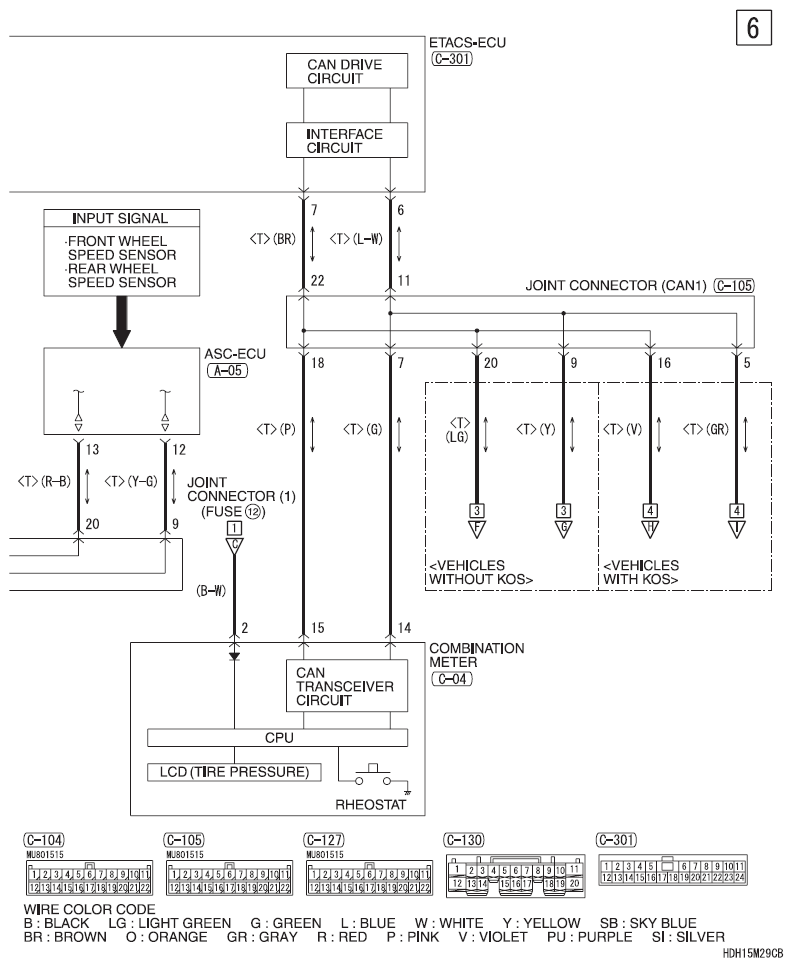

Fig 6: Tire Pressure Monitoring System (M/T) - Circuit Diagram (6 Of 6)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
