Electric Power Steering Connector Installation

CAUTION:
  • Connect the motor harness to electric power steering-ECU without excessive bend or twisting.
  • Connect the connector securely.

Connect the electric power steering connector to the electric power steering-ECU in the order shown.

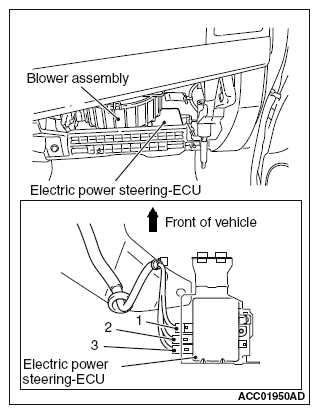

Fig 1: Identifying Electric Power Steering-ECU
G09627494Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
