Band Installation

CAUTION:

Hold the rack housing, and use special tool bellows band crimping tool (MB992209 or MB992908) to crimp the bellows band securely.
Crimp the bellows band until special tool (MB992209 or MB992908) touches the stopper.

Use special tool (MB992209 or MB992908) to crimp the bellows band.

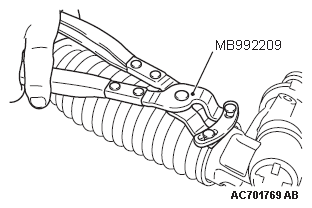

Fig 1: Crimping Bellows Band Using Special Tool - MB992209/MB992908 (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

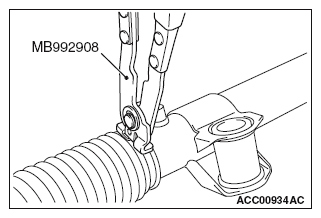

Fig 2: Crimping Bellows Band Using Special Tool - MB992209/MB992908 (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check that crimped width (A) is within the standard value.
Standard value (A): 2.4 - 2.8 mm (0.09 - 0.11 in)
