Steering Column Dash Panel Cover Installation

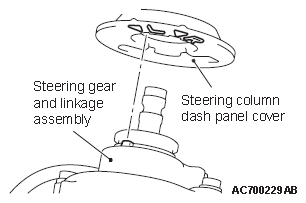

Install the steering column dash panel cover to the steering gear and linkage assembly by aligning L mark and the protrusion part of gearbox as shown in the illustration.

Fig 1: Identifying Steering Gear And Linkage Assembly
G07032813Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
