>> B << Shift Cable Connection (Shift Lever Side)

To the area of shift lever assembly shown in the figure below, securely insert the shift cable tip until it clicks into place.

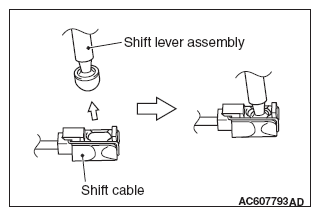

Fig 1: Identifying Shift Lever Assembly And Shift Cable
G09641176Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
