<< A >> Select Cable Connection (Transaxle Side)/Clip Removal

Set the select cable clips to a status shown in the figure below, then disconnect the cable.

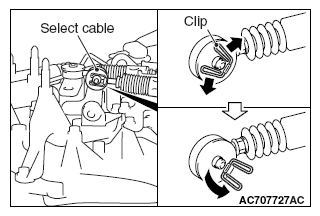

Fig 1: Identifying Select Cable Clips
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Push down the clip claw using a screwdriver or others. Then, remove the clip together with the cable from the bracket.

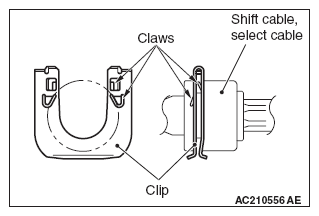

Fig 2: Identifying Shift Cable, Select Cable, Claws And Clips
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
