>> G << Transaxle Case Installation

  1. Completely degrease the FIPG-applied surface so that water and oil including the old sealant cannot adhere to the surface coated with the sealant.

    Never touch the degreased surface by hand.

  2. Apply a bead (approximately 2.5 mm (0.10 inch) thick) of specified sealant to the transaxle case as shown in the illustration.

    Specified sealant: Mitsubishi Motors Genuine Part No. MD997740 or equivalent

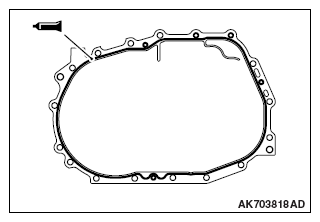

    Fig 1: Identifying Sealant Applying Area On Transaxle Case
    G09641237Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
