Cruise Control "On/Off" Switch Check

  1. Turn the ignition switch to the "ON" position.
  2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "ON/OFF" switch is pressed (cruise control system: ON.)
  3. Press the "ON/OFF" switch again (cruise control system: OFF), and check that the "CRUISE" indicator light within the combination meter goes out.

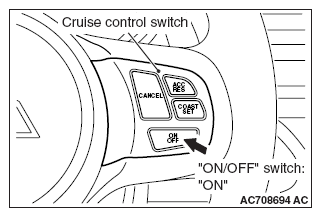

    Fig 1: Locating Cruise Control ON/OFF Switch
    G09641087Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

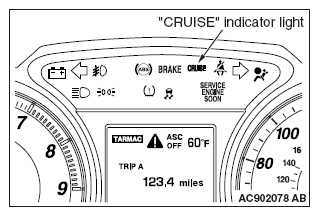

    Fig 2: Identifying Cruise Indicator Light
    G09641088Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
