How To Initiate The Service Mode

  1. Press "MAP" button and "SETTINGS" button at the same time for at least 3.5 seconds.

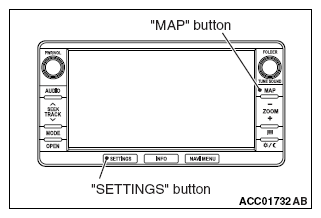

    Fig 1: Pressing MAP Button
    G09652869Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. The service mode will be initiated. Then "Service" screen will be displayed.

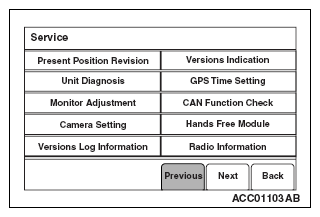

    Fig 2: Service Screen
    G09652870Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
