Hands Free Module - Lancer Evolution
>>
General Information
>>
System block diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System block diagram

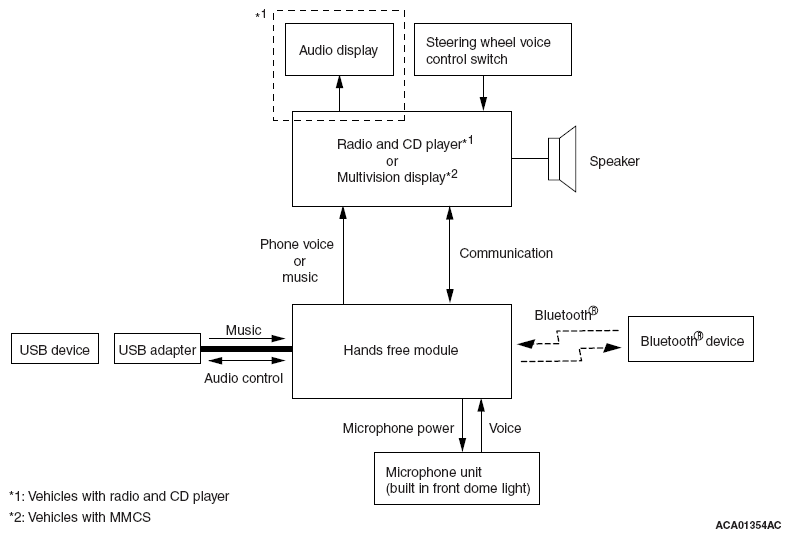

Fig 1: Hands Free Module Block Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
