USB Adapter Inspection

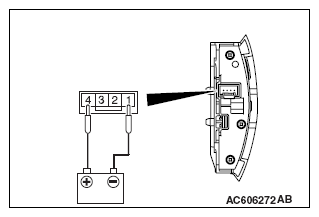

Fig 1: Applying Battery Voltage To Steering Wheel Voice Control Switch
G09652925Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. Remove the USB adapter. (Refer to USB ADAPTER REMOVAL AND INSTALLATION  )
  2. Check that the continuity exists between the front side terminals of USB adapter and rear side terminals of USB adapter.
    Front side terminal Rear side terminal Measurement value
    1 1 Continuity exists (2 Ω or less)
    2 2
    3 3
    4 4

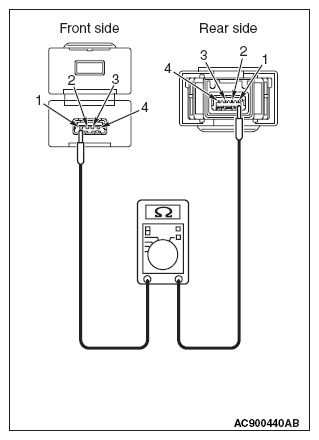

    Fig 2: Checking USB Adapter Continuity
    G09652926Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
