How To Register BLUETOOTH® Device

  1. Go to "BLUETOOTH" SCREEN .
  2. Select "Register Device" button on "Bluetooth" screen.
    NOTE: "Register Device" is inactive under the following cases:
    • Seven Bluetooth® devices have been registered.
    • Mobile phone is being used.
    • Bluetooth® device(s) are being removed.
    • Registration of Bluetooth® device(s) are being cancelled.

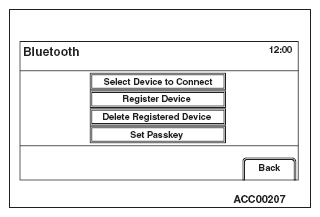

    Fig 1: Phone Bluetooth Menu Screen
    G09652906Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. "Starting registration to Bluetooth device" will be displayed. Then "Register Device" screen will be displayed. Enter the passkey (4-digit number), which is displayed on the screen, to the appropriate Bluetooth® device.
    NOTE: A predetermined 4-digit number may be assigned to some Bluetooth® devices.

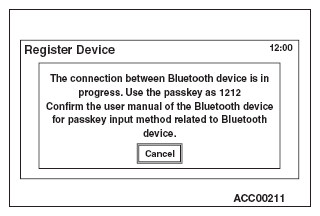

    Fig 2: Register Device Screen
    G09652907Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If the registration is successfully completed, "Bluetooth device certification process finished with XXXX (Bluetooth® device name)" will be displayed. It will be switched to "Select Device to Connect" screen in several seconds and then display registered Bluetooth® device(s).

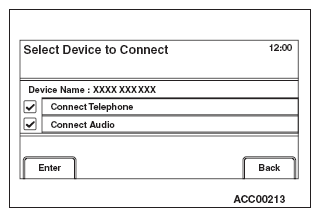

    Fig 3: Select Device To Connect Screen
    G09652908Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
