Special Tools

Tool Tool number and name Supersession Application

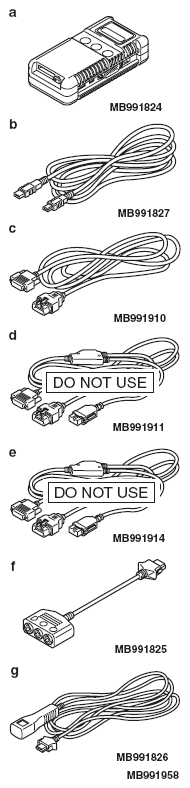

G09652854
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
CAN bus diagnostics, diagnostic trouble code or data list check.

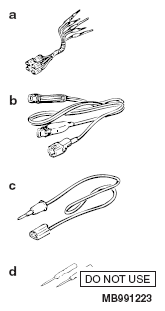

G09652855
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Check harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tool (jumper) Continuity check and voltage measurement at harness wire or connector
  1. For checking connector pin contact pressure
  2. For checking power supply circuit
  3. For checking power supply circuit
  4. For connecting a locally sourced tester
G09652856
 MB992006
Extra fine probe		 - Continuity check and voltage measurement at harness wire or connector
