Splice Locations - Lancer Evolution: Door

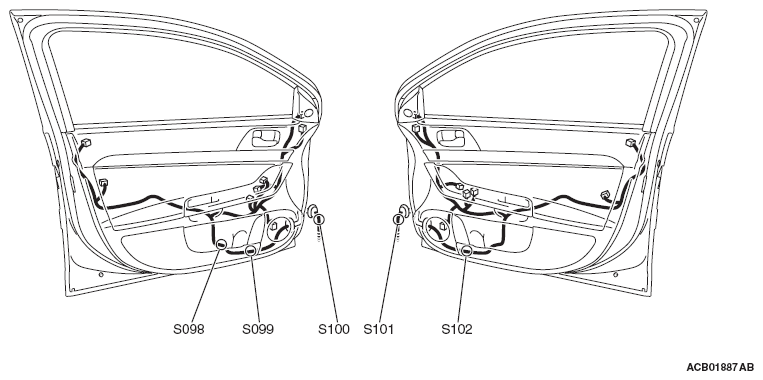

Fig 1: Door Splice Locations
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
