Dash Panel

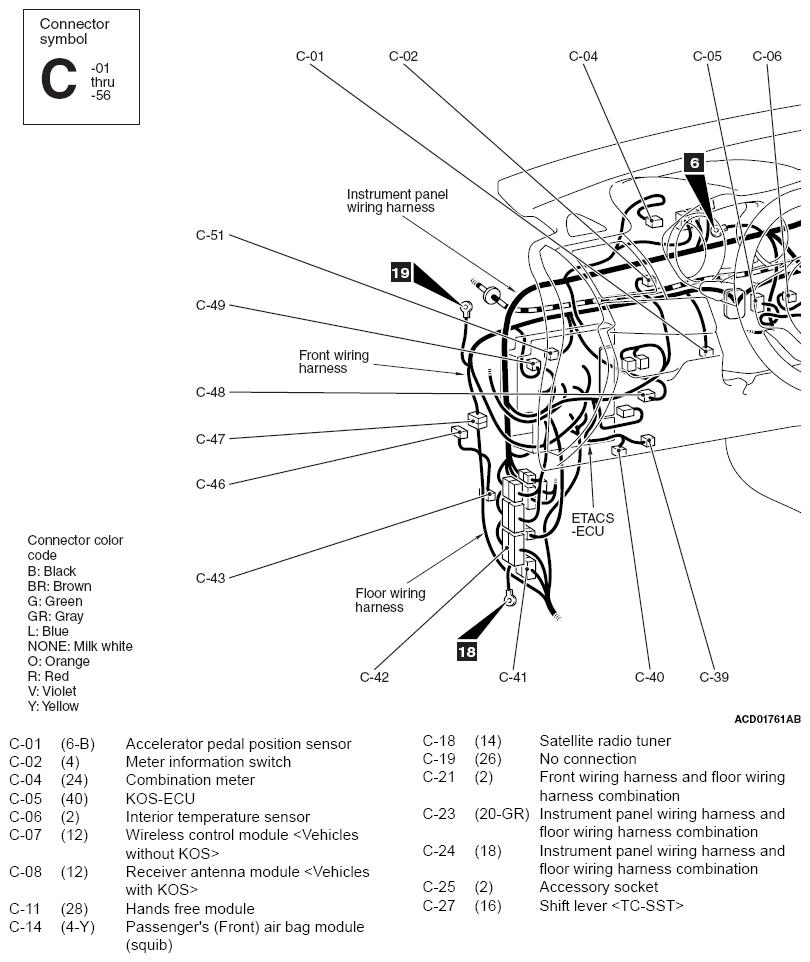

Fig 1: Dash Panel Connectors Location (1 Of 6)

G09620637

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

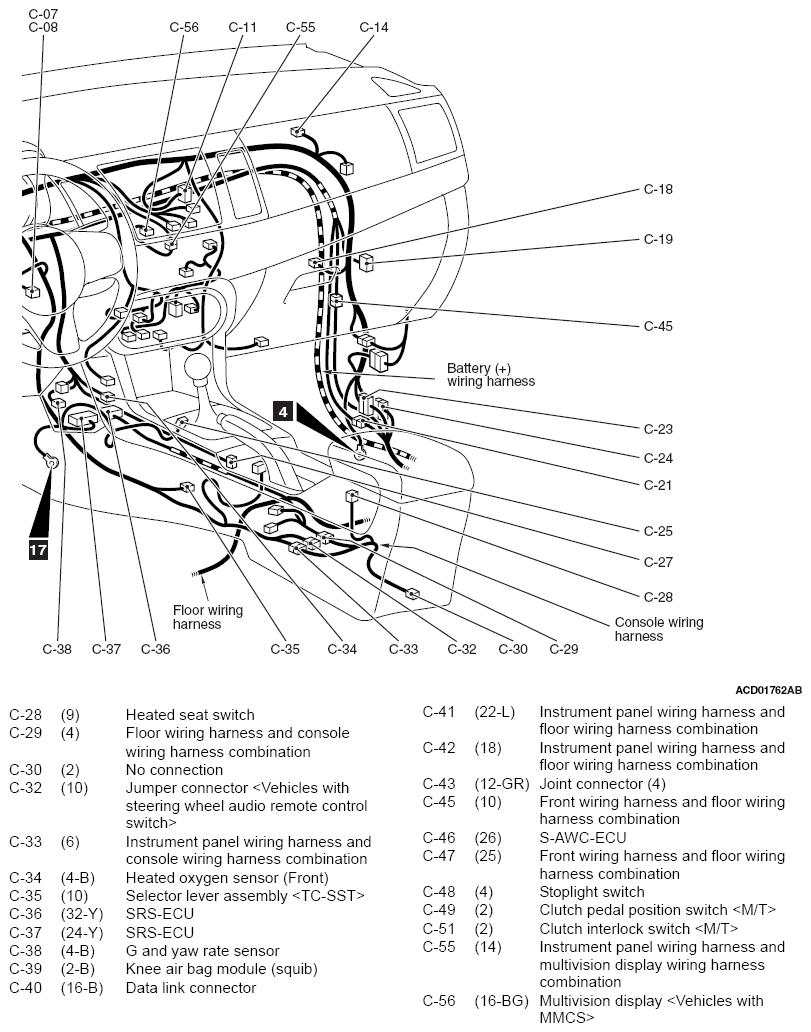

Fig 2: Dash Panel Connectors Location (2 Of 6)

G09620638

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

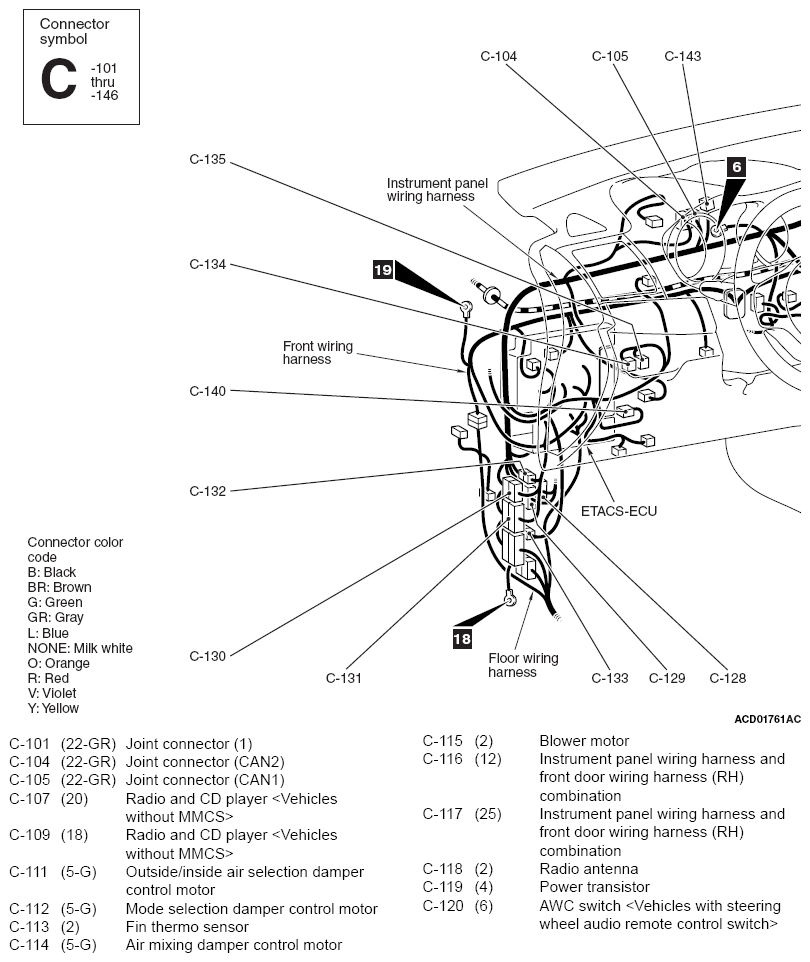

Fig 3: Dash Panel Connectors Location (3 Of 6)

G09620639

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

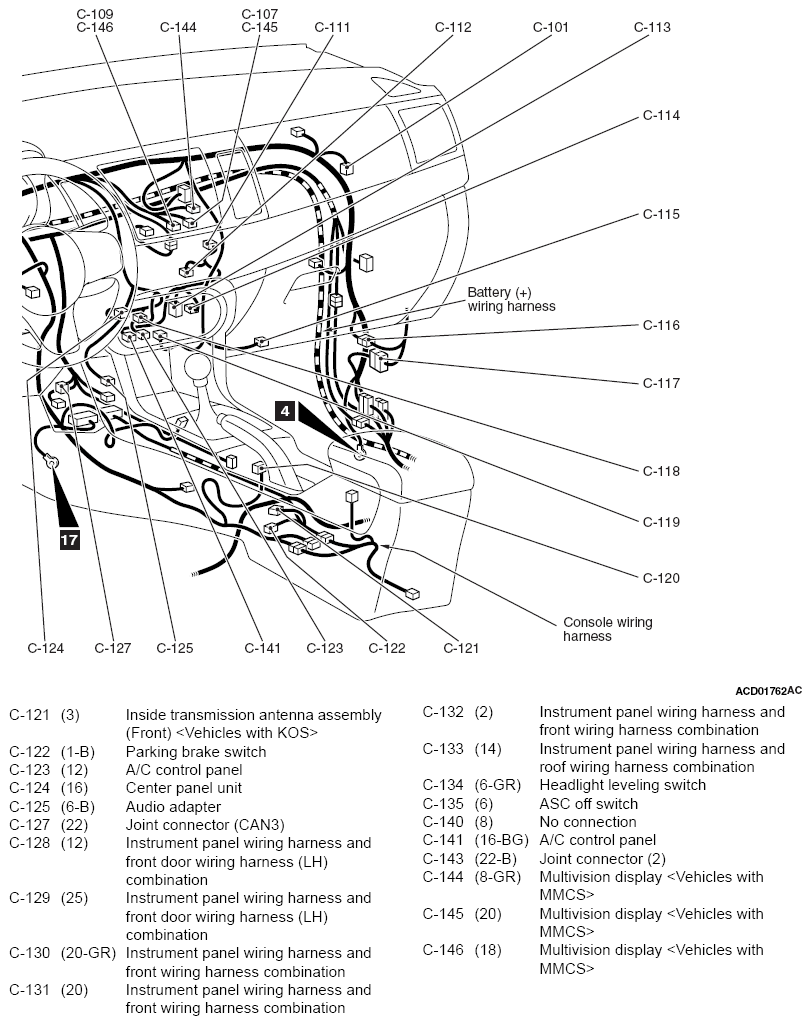

Fig 4: Dash Panel Connectors Location (4 Of 6)

G09620640

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

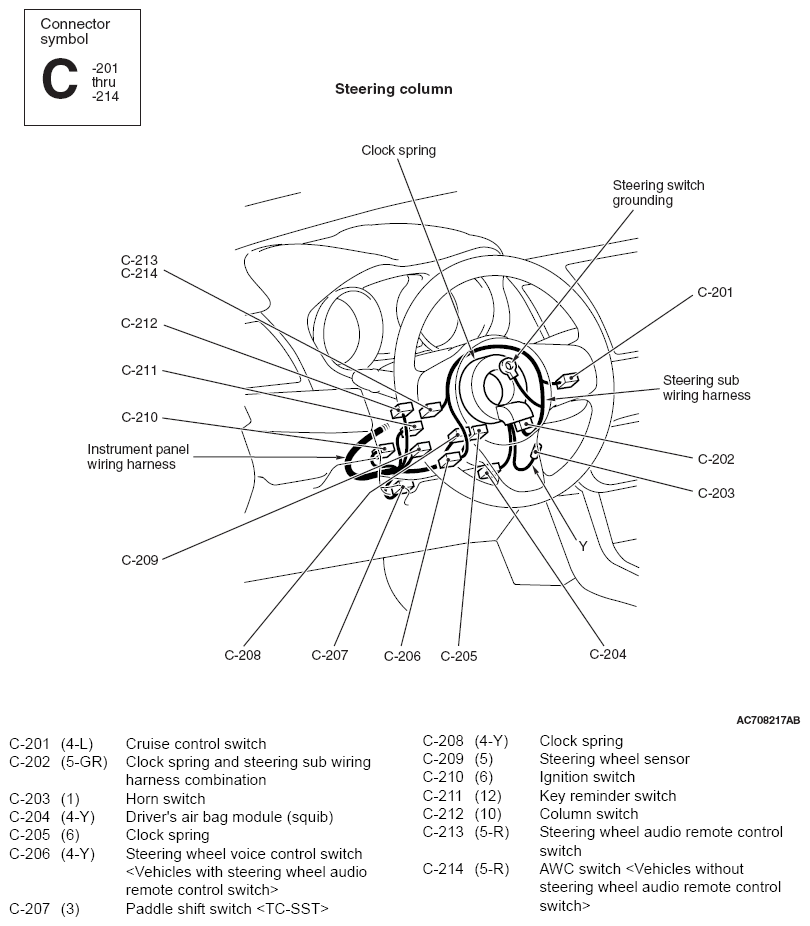

Fig 5: Dash Panel Connectors Location (5 Of 6)

G09620641

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

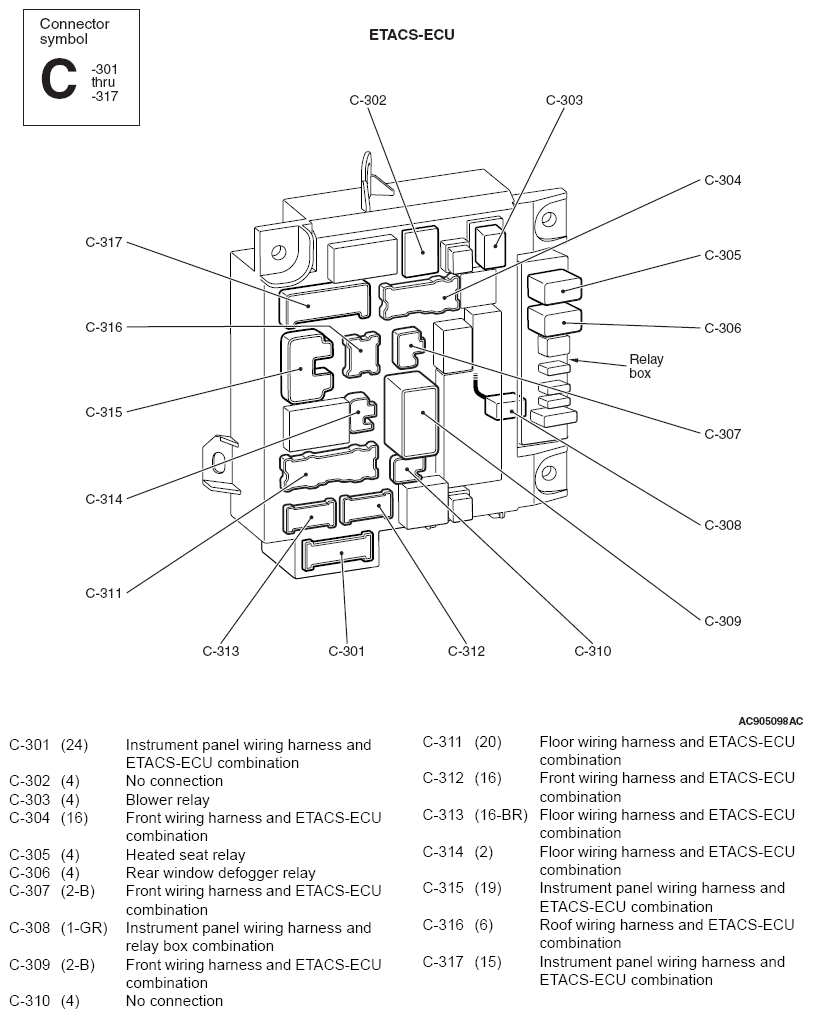

Fig 6: Dash Panel Connectors Location (6 Of 6)

G09620642

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
