5. Periodic Reminder Schedule Set

The service reminder schedule can be changed.

NOTE: In addition to the operation of the scan tool MB991958, the schedule can be changed by operating the meter information switch on the combination meter. Refer to:

Fig 1: Scantool Display - Temporary Warning Period

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

On the "Service Reminder" screen, select "5 Periodic reminder schedule set."
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been set to "NAS 10."

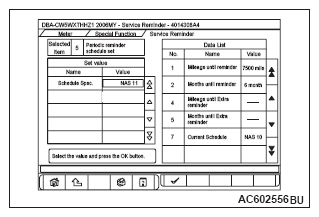

Fig 2: Selecting 5 Periodic Reminder Schedule Set
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the schedule to be changed from "Set value."
Press the "OK" button.

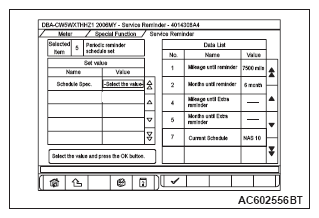

Fig 3: Scantool Display - Set Value
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The schedule is changed.
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been changed to "NAS 11."

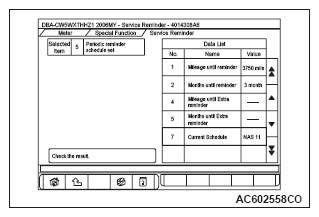

Fig 4: Scantool Display - Current Schedule
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
