6. Integrated Value Adjustment

At the combination meter replacement or for the vehicle with its battery being removed for a long period (15 days or more), this adjustment is used to reset the mileage and elapsed days for check warning.

1. On the "Service Reminder" screen, select "6 Integrated value adjustment."
   NOTE: The screen indicates that the current mileage and elapsed days (Nos. 8 and 9 in the data list) are "26 mile" and "0 day."

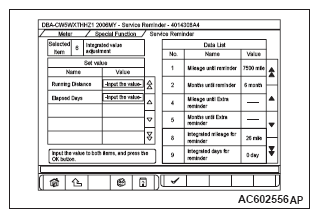

   Fig 1: Selecting 6 Integrated Value Adjustment Screen

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. To "Set value," input the mileage and elapsed days to be reset.
   NOTE: Always input both the mileage and elapsed days.
3. Press the "OK" button.

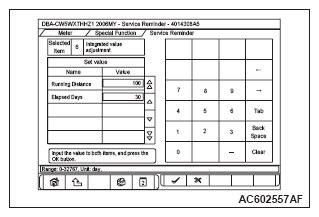

   Fig 2: Scantool Display - Set Value

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. The mileage and elapsed days are changed. The combination meter automatically recalculates the distance and days to the nearest next check from the settings of mileage and elapsed days for check warning, and then displays them in "Data List."
   NOTE:

   • The screen indicates that the current mileage and elapsed days (Nos. 8 and 9 in the data list) have been changed to "100 mile" and "30 day."
   • Set the elapsed days for check warning to "0 day" by the above resetting method, thereby the timer is reset indirectly.

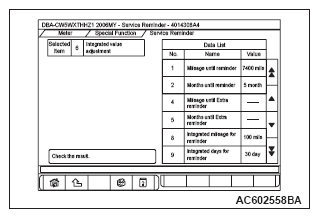

   Fig 3: Scantool Display - Data List

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
