Vehicles Without Aluminum Pedal Pad (2016)

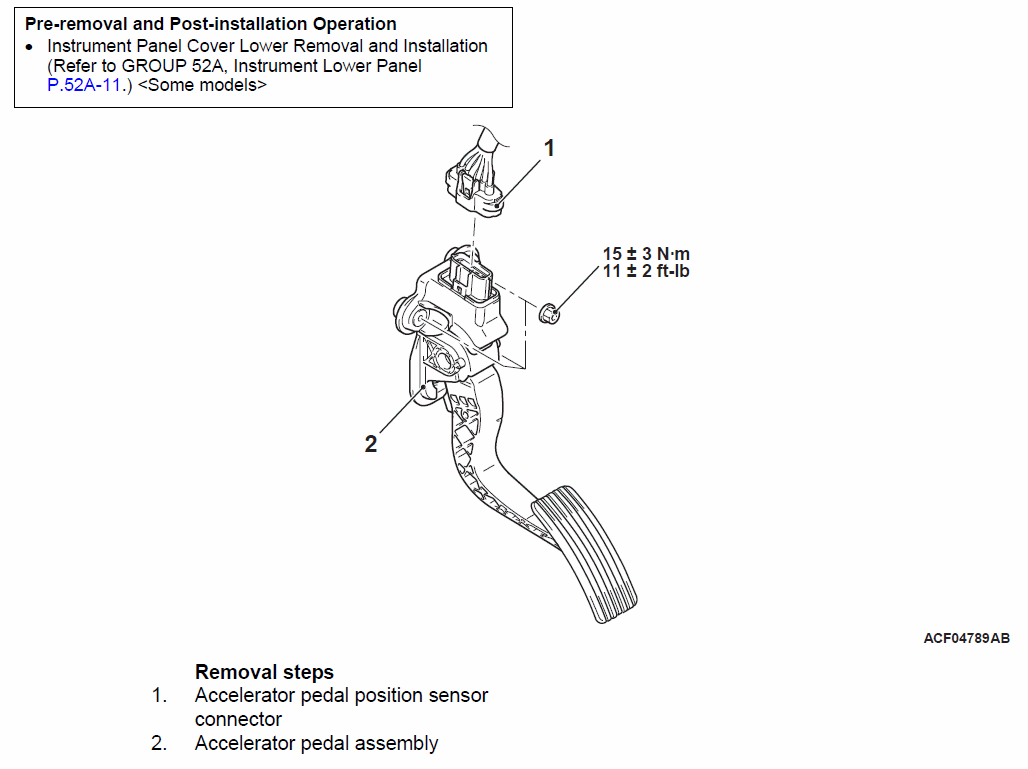

Fig 1: Removing/Installing Accelerator Pedal Components With Torque Specification - Vehicles Without Aluminum Pedal Pad (2016)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
