Removal And Installation (2.0L Engine Turbo)

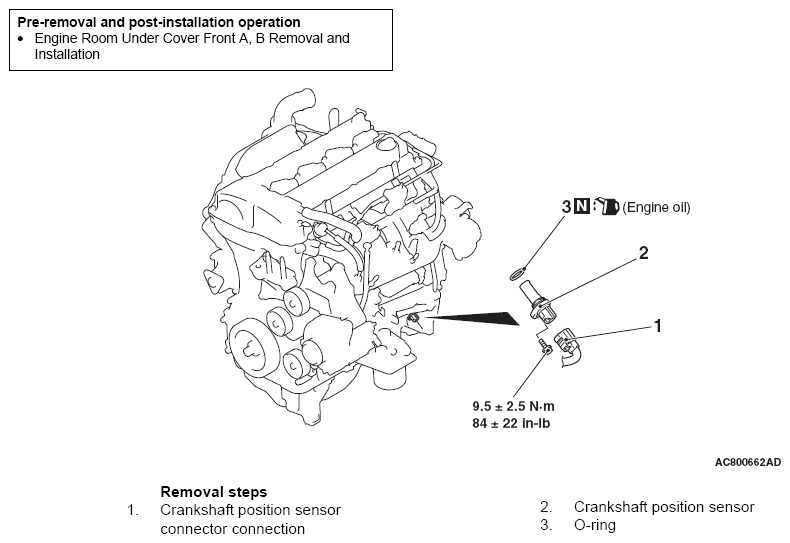

Fig 1: Removing/Installing Crankshaft Position Sensor Components With Torque Specifications - 2.0L Engine Turbo
G09625429Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
