System Diagram: (Turbo)

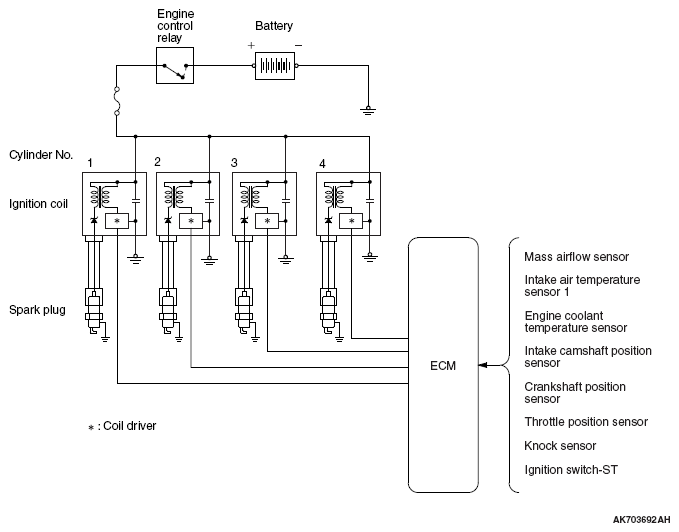

Fig 1: Ignition System Diagram - Turbo
G05903694Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
