Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine): Notes

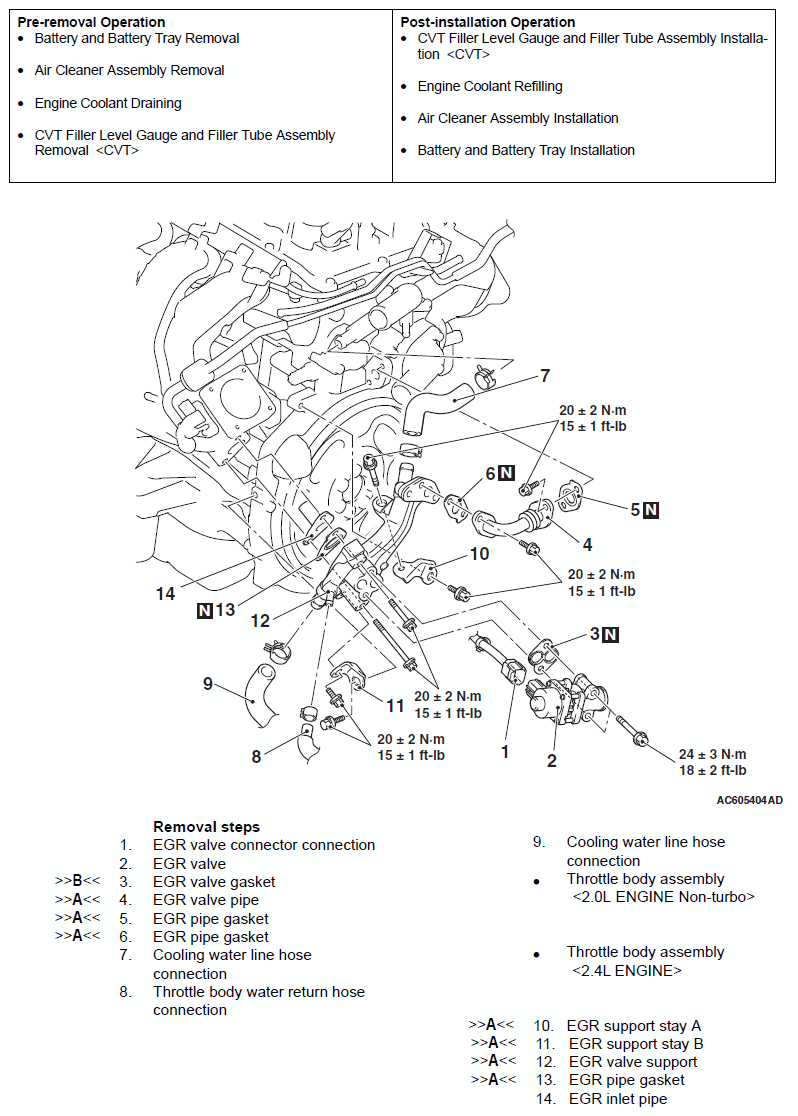

Fig 1: Removing/Installing EGR System Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
