>> B << Shaft Boot Installation

WARNING: This page is about a different variant/trim than selected.

Fit the shaft boot into the groove.

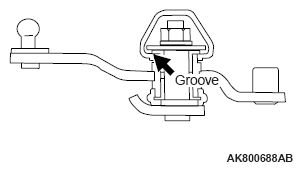

Fig 1: Locating Shaft Boot Groove
G07047565Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
