Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

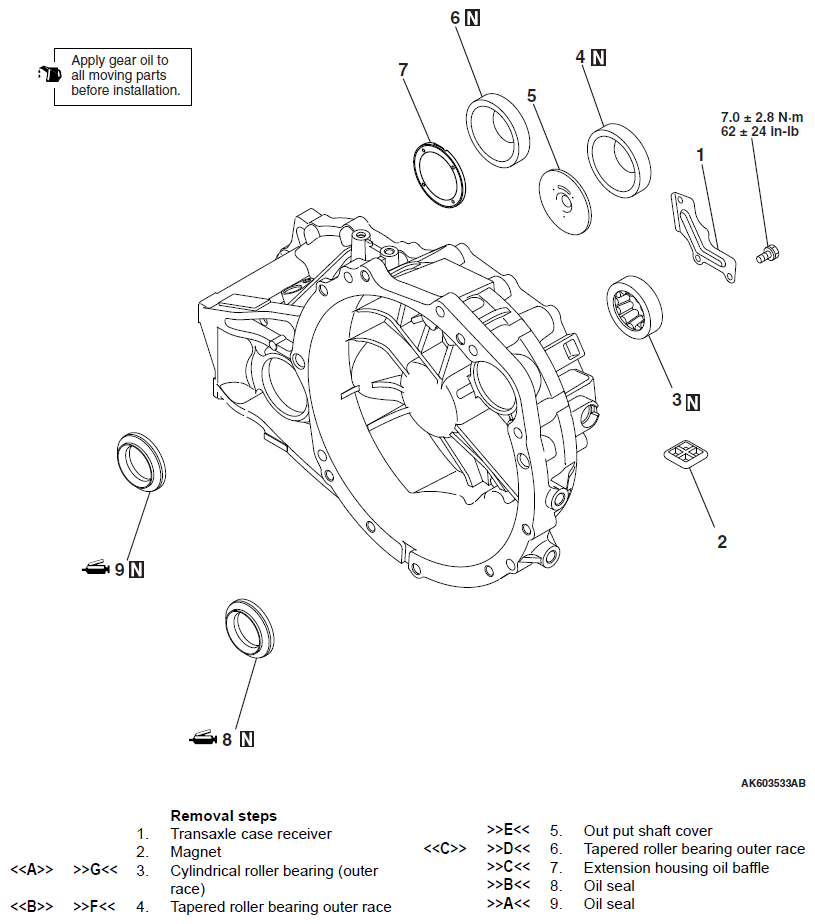

Fig 1: Disassembling/Assembling Clutch Housing Components With Torque Specification
G09625698Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
